HAL200-S, HAL50-S Current Transducer

HAL200-S Description

Current Transducer HAL 50 ..600-S For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit an.

HAL200-S Features

* Hall effect measuring principle
* Insulating plastic case recognized according to UL 94-V0. Advantages
* Easy installation
* Low power consumption
* Small size and space saving
* Only one design for wide current ratings range
* High im

HAL200-S Applications

* AC variable speed drives and servo motor drives
* Static converters for DC motor drivers
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power suppliers for welding applications. Ap

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HAL200-S, HAL50-S. Please refer to the document for exact specifications by model.

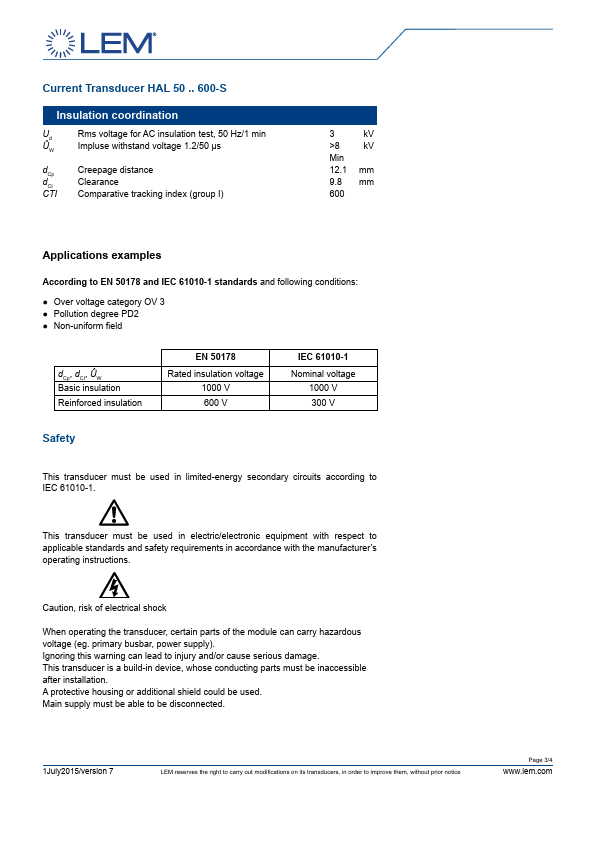

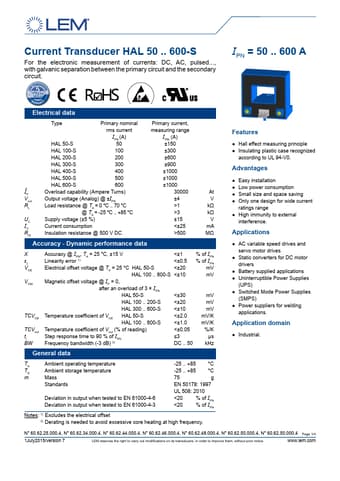

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HAL200-S, HAL50-S
Manufacturer
LEM
File Size
585.33 KB
Datasheet
HAL50-S-LEM.pdf
Description
Current Transducer
Note
This datasheet PDF includes multiple part numbers: HAL200-S, HAL50-S.
Please refer to the document for exact specifications by model.
