HT6541B, HT6541A Push-Pull Output Sub-Microamp Comparators

HT6541B Description

HT654x Push-Pull Output Sub-Microamp Comparators .
The Microchip Technology Inc.

HT6541B Features

* Low Quiescent Current: 600 nA/comparator (typ. )
* Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
* CMOS/TTL-Compatible Output
* Propagation Delay 4 µs (typ. )
* Wide Supply Voltage Range: 1.6V to 5.5V
* Available in Single, Dual and Quad
* Singl

HT6541B Applications

* Laptop Computers
* Mobile Phones
* Metering Systems
* Hand-held Electronics
* RC Timers
* Alarm and Monitoring Circuits
* Windowed Comparators
* Multi-vibrators Related Devices
* Open-Drain Output: HT6546/7/8/9 PIN CONFIGURAT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT6541B, HT6541A. Please refer to the document for exact specifications by model.

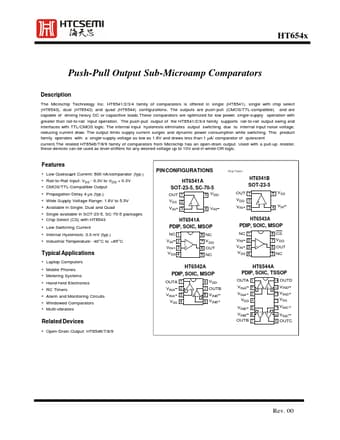

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT6541B, HT6541A
Manufacturer
HTCSEMI
File Size
1.23 MB
Datasheet
HT6541A-HTCSEMI.pdf
Description
Push-Pull Output Sub-Microamp Comparators
Note
This datasheet PDF includes multiple part numbers: HT6541B, HT6541A.
Please refer to the document for exact specifications by model.
