HT651024B, HT651023B LVDS serializer/decoder transmitter

HT651024B Description

HT651023B/HT651224B LVDS serializer/decoder transmitter General .
designed to transmit and receive serial data over FR‐4PCB backplanes, balanced copper cables and unshielded twisted pair.

HT651024B Features

* 100MBPS TO 900 MBPS SERIALIZER/DESERIA LIZER
* LOCK INDICATION AND SYNCHRONIZATION MODE FOR FASTER LOCK
* NO EXTERNAL COMPONENTS REQUIRED FOR PLL
* PROGRAMMABLE EDGE TRIGGER ON CLOCK
* CHIPSET POWER CONSUMPTION < 500 mW (TYP) AT 90MHz
* INDUSTRIAL TEMPERATURE RANGE
* HI

HT651024B Applications

* BACKPLANE INTERCONNECT
* WIRELESS BASE STATION
* FIBER OPTIC TRANSCERVER FUNCTIONAL BLOCK DIAGRAM HT651023 HT651224 Input Latch Parallel to Serial Serial to Parallel Output Latch DIN 0-DIN9 TCLK _R/F TCLK SYNC LVDS Driver PLL Timing / Control ++
* LVDS Receiver PLL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT651024B, HT651023B. Please refer to the document for exact specifications by model.

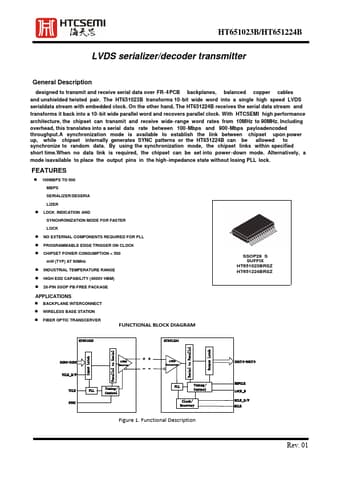

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT651024B, HT651023B
Manufacturer
HTCSEMI
File Size
954.09 KB
Datasheet
HT651023B-HTCSEMI.pdf
Description
LVDS serializer/decoder transmitter
Note
This datasheet PDF includes multiple part numbers: HT651024B, HT651023B.
Please refer to the document for exact specifications by model.
