DS1232D - Micro-Monitor

Download the DS1232D datasheet PDF (DS1232 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for micro-monitor.

Description

The DS1232 Micro-Monitor monitors three vital conditions for a microprocessor: power supply, software execution, and external override.

First, a precision temperature compensated reference and comparator circuit monitors the status of VCC.

of tolerance condition occurs,

Features

  • Halts and restarts an out-of-control μ-processor.
  • Holds μ-processor in check during power transients.
  • Automatically restarts μ-processor after power failure.
  • Monitors push-button for external override.
  • Accurate 5% or 10% μ-processor power supply monitoring.
  • Eliminates the need for discrete components DS1232 SOP-8.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DS1232-HTC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • DS1232 - MicroMonitor Chip (Dallas)
  • DS1232LP - Low Power MicroMonitor Chip (Dallas)
  • DS1232LPS - Low Power MicroMonitor Chip (Dallas)
  • DS1230AB - 256k Nonvolatile SRAM (Dallas)
  • DS1230W - 3.3V 256k Nonvolatile SRAM (Dallas)
  • DS1230Y - 256k Nonvolatile SRAM (Dallas)
  • DS1231 - Power Monitor Chip (Dallas)
  • DS1231S - Power Monitor Chip (Dallas)
  • DS1233 - 5V EconoReset (Dallas)
  • DS1233A - 3.3V EconoReset (Dallas)
Other Datasheets by HTC

Full PDF Text Transcription

Click to expand full text

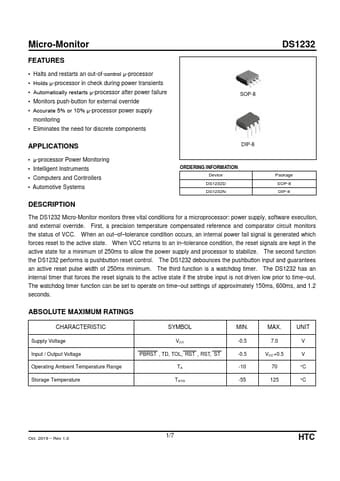

Micro-Monitor FEATURES • Halts and restarts an out-of-control μ-processor • Holds μ-processor in check during power transients • Automatically restarts μ-processor after power failure • Monitors push-button for external override • Accurate 5% or 10% μ-processor power supply monitoring • Eliminates the need for discrete components DS1232 SOP-8 APPLICATIONS DIP-8 • μ-processor Power Monitoring • Intelligent Instruments • Computers and Controllers • Automotive Systems ORDERING INFORMATION Device DS1232D DS1232N Package SOP-8 DIP-8 DESCRIPTION The DS1232 Micro-Monitor monitors three vital conditions for a microprocessor: power supply, software execution, and external override. First, a precision temperature compensated reference and comparator circuit monitors the status of VCC.
