DS1233 - 5V EconoReset

General Description

override.

Key Features

  • Automatically restarts microprocessor after power failure.
  • Monitors pushbutton for external override.
  • Internal circuitry debounces pushbutton switch.
  • Maintains reset for 350ms after VCC returns to an in-tolerance condition or pushbutton released.
  • Accurate 5%, 10%, or 15% microprocessor 5V power supply monitoring.
  • Reduces need for discrete components.
  • Precision temperature-compensated voltage reference and voltage sensor.
  • Low-cost TO-92 package or surface-.

📥 Download Datasheet

Datasheet Details

Part number DS1233
Manufacturer Dallas
File Size 121.41 KB
Description 5V EconoReset
Datasheet download datasheet DS1233 Datasheet

Other Datasheets by Dallas

Part Number Description
DS1233A 3.3V EconoReset
DS1233D 5V EconoReset
DS1233M EconoReset
DS1230AB 256k Nonvolatile SRAM
DS1230W 3.3V 256k Nonvolatile SRAM
DS1230Y 256k Nonvolatile SRAM
DS1231 Power Monitor Chip
DS1231S Power Monitor Chip
DS1232 MicroMonitor Chip
DS1232LP Low Power MicroMonitor Chip

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

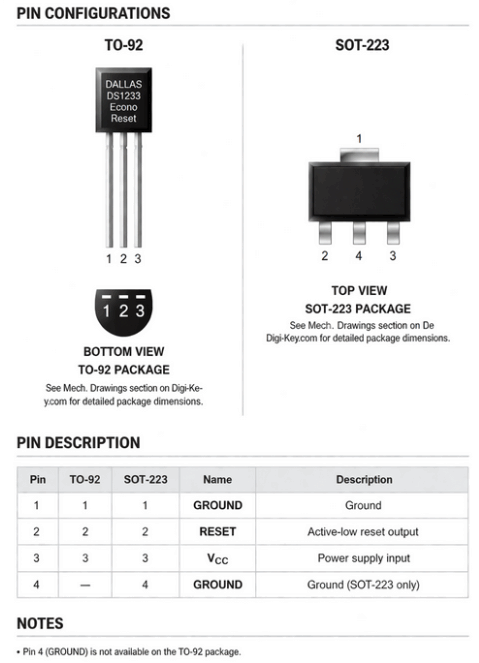

www.maxim-ic.com DS1233 5V EconoReset FEATURES § Automatically restarts microprocessor after power failure § Monitors pushbutton for external override § Internal circuitry debounces pushbutton switch § Maintains reset for 350ms after VCC returns to an in-tolerance condition or pushbutton released § Accurate 5%, 10%, or 15% microprocessor 5V power supply monitoring § Reduces need for discrete components § Precision temperature-compensated voltage reference and voltage sensor § Low-cost TO-92 package or surface-mount SOT-223 package § Internal 5kW pull-up resistor § Operating temperature of -40°C to +85°C PIN ASSIGNMENT DALLAS DS1233 Econo Reset 1 123 123 BOTTOM VIEW TO-92 PACKAGE See Mech. Drawings Section on Website 24 3 TOP VIEW SOT-223 PACKAGE See Mech.
