INA-02184 - Silicon Bipolar MMIC Amplifier

📥 Download Datasheet

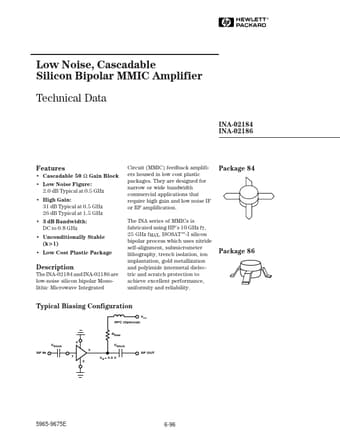

INA-02184 Datasheet Preview — Preview of INA-02184 PDF

Datasheet Details

Part number	INA-02184
Manufacturer	HP
File Size	62.76 KB
Description	Silicon Bipolar MMIC Amplifier
Datasheet	INA-02184-HP.pdf

INA-02184 Product details

Description

The INA-02184 and INA-02186 are low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifiers housed in low cost plastic packages.They are designed for narrow or wide bandwidth commercial applications that require high gain and low noise IF or RF amplification.Package 84 The INA series of MMICs is fabricated using HP’s 10 GHz fT, 25 GHz fMAX, ISOSAT™-I silicon bipolar process which uses nitride self-alignment, submicrometer lithography, trench isolation, ion i

Features

Cascadable 50 Ω Gain Block.
Low Noise Figure: 2.0 dB Typical at 0.5 GHz.
High Gain: 31 dB Typical at 0.5 GHz 26 dB Typical at 1.5 GHz.
3 dB Bandwidth: DC to 0.8 GHz.
Unconditionally Stable (k>1).
Low Cost Plastic Package.
