INA-02186 - Silicon Bipolar MMIC Amplifier

Download the INA-02186 datasheet PDF. This datasheet also covers the INA-02184 variant, as both devices belong to the same silicon bipolar mmic amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

Circuit (MMIC) feedback amplifiers housed in low cost plastic packages.

They are designed for narrow or wide bandwidth commercial applications that require high gain and low noise IF or RF amplification.

Features

  • Cascadable 50 Ω Gain Block.
  • Low Noise Figure: 2.0 dB Typical at 0.5 GHz.
  • High Gain: 31 dB Typical at 0.5 GHz 26 dB Typical at 1.5 GHz.
  • 3 dB Bandwidth: DC to 0.8 GHz.
  • Unconditionally Stable (k>1).
  • Low Cost Plastic Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (INA-02184-HP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number INA-02186
Manufacturer HP
File Size 62.76 KB
Description Silicon Bipolar MMIC Amplifier
Datasheet download datasheet INA-02186 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
INA101 High Accuracy INSTRUMENTATION AMPLIFIER Burr-Brown Corporation
INA101 Low-Power Instrumentation Amplifier AnalogySemi
INA102 Low Power INSTRUMENTATION AMPLIFIER Burr-Brown Corporation
INA102 Low-Power Instrumentation Amplifier AnalogySemi
INA103 Low Noise/ Low Distortion INSTRUMENTATION AMPLIFIER Burr-Brown Corporation

Other Datasheets by HP

Part Number Description
INA-02184 Silicon Bipolar MMIC Amplifier
INA-02100 Silicon Bipolar MMIC Amplifier
INA-02170 Silicon Bipolar MMIC Amplifier
INA-01100 Silicon Bipolar MMIC Amplifier
INA-01170 Silicon Bipolar MMIC Amplifier

Full PDF Text Transcription

Click to expand full text

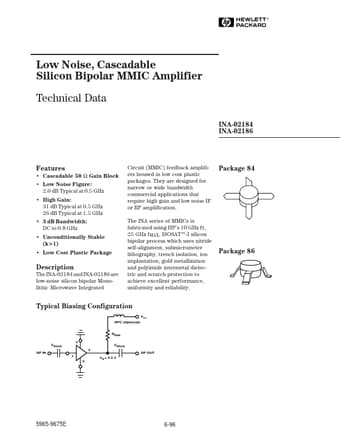

Low Noise, Cascadable Silicon Bipolar MMIC Amplifier Technical Data INA-02184 INA-02186 Features • Cascadable 50 Ω Gain Block • Low Noise Figure: 2.0 dB Typical at 0.5 GHz • High Gain: 31 dB Typical at 0.5 GHz 26 dB Typical at 1.5 GHz • 3 dB Bandwidth: DC to 0.8 GHz • Unconditionally Stable (k>1) • Low Cost Plastic Package Description The INA-02184 and INA-02186 are low-noise silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) feedback amplifiers housed in low cost plastic packages. They are designed for narrow or wide bandwidth commercial applications that require high gain and low noise IF or RF amplification.
