HPND-4005 - Beam Lead PIN Diode

HPND-4005 Description

Beam Lead PIN Diode Technical Data HPND-4005 .
The HPND-4005 planar beam lead PIN diode is constructed to offer exceptional lead strength while achieving excellent electrical performance at high fr.

HPND-4005 Features

* High Breakdown Voltage 120 V Typical
* Low Capacitance 0.017 pF Typical
* Low Resistance 4.7 Ω Typical
* Rugged Construction 4 Grams Minimum Lead Pull

HPND-4005 Applications

* The HPND-4005 beam lead PIN diode is designed for use in stripline or microstrip circuits. Applications include switching, attenuating, phase shifting, limiting, and modulating at microwave frequencies. The CATHODE 110 (4.3) 80 (3.1) GOLD LEADS S1O2/Si3N4 PASSIVATION 130 (5.1) 110 (4.3) 130 (5.1)

📥 Download Datasheet

Preview of HPND-4005 PDF

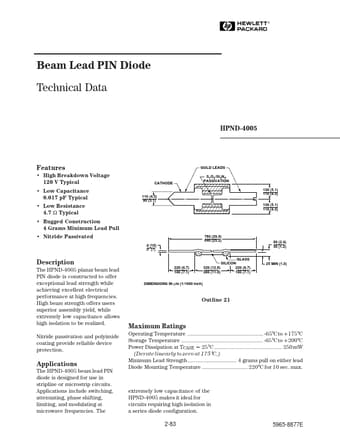

datasheet Preview Page 2 datasheet Preview Page 3
