HLMP-1302, HLMP-1300 Diffused LED Lamps

HLMP-1302 Description

H T-1 (3 mm) Diffused LED Lamps Technical Data HLMP-130X Series HLMP-1385 HLMP-140X Series HLMP-1485 HLMP-1503 HLMP-1523 HLMP-1585 HLMP-K40X Series .
This family of T-1 lamps is widely used in general purpose indicator applications.

HLMP-1302 Features

* High Intensity
* Choice of 4 Bright Colors High Efficiency Red Orange Yellow High Performance Green
* Popular T-1 Diameter Package
* Selected Minimum Intensities
* Wide Viewing Angle
* General Purpose Leads Package Dimensions 1-134
* Reliabl

HLMP-1302 Applications

* Diffusants, tints, and optical design are balanced to yield superior light output and wide viewing angles. Several intensity choices are available in each color for increased design flexibility. Part Number HLMP- 1300 1301 1302 1385 K400 K401 K402 1400 1401 1402 1485 1503 1523 1585 K600[1] Applic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HLMP-1302, HLMP-1300. Please refer to the document for exact specifications by model.

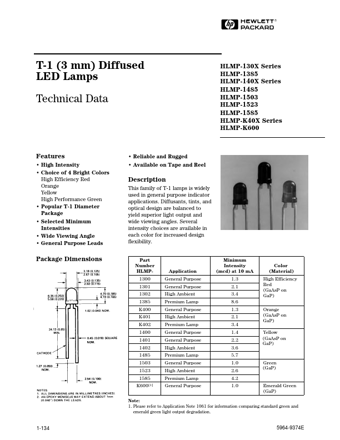

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HLMP-1302, HLMP-1300
Manufacturer
HP
File Size
172.19 KB
Datasheet
HLMP-1300-HP.pdf
Description
Diffused LED Lamps
Note
This datasheet PDF includes multiple part numbers: HLMP-1302, HLMP-1300.
Please refer to the document for exact specifications by model.
