HLMP-1321 High Intensity LED Lamp

HLMP-1321 Description

HLMP-132x Series, HLMP-142x Series, HLMP-152x Series T-1 (3 mm) High Intensity LED Lamps Data Sheet .
The Broadcom® family of T-1 lamps is specially designed for applications requiring higher on-axis intensity than is achievable with a standard lamp.

HLMP-1321 Features

* High intensity
* Choice of 3 bright colors
* Red
* Yellow
* Green
* Popular T-1 diameter package
* Narrow viewing angle
* General purpose leads
* Reliable and rugged
* Available on tape and reel For more information, refer to the Tape and Reel Op

📥 Download Datasheet

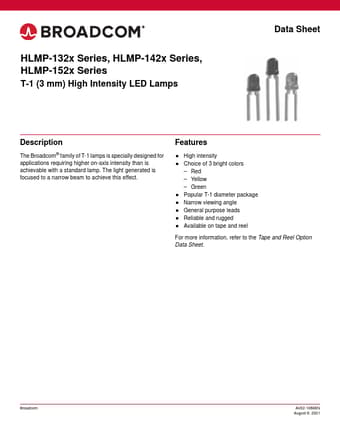

Preview of HLMP-1321 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HLMP-1321
Manufacturer
Broadcom
File Size
619.87 KB
Datasheet
HLMP-1321-Broadcom.pdf
Description
High Intensity LED Lamp
