CMT4502 - Bluetooth Low Energy SoC

Name: CMT4502
SKU: CMT4502-1564295

HOPERF

📥 Download Datasheet

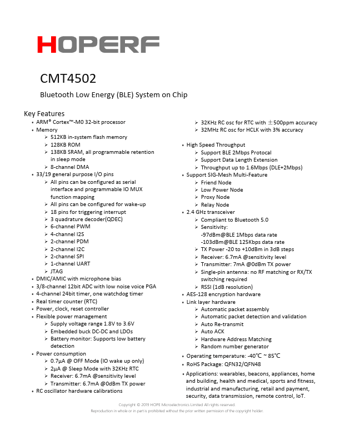

CMT4502 Datasheet Preview — Preview of CMT4502 PDF

Datasheet Details

Part number	CMT4502
Manufacturer	HOPERF
File Size	2.36 MB
Description	Bluetooth Low Energy SoC
Datasheet	CMT4502-HOPERF.pdf

CMT4502 Product details

Description

1. Pin2, 3, 4, 5, 7, 8 Corrected the information of “CMT4502 (QFN48) Pin Functions Pin2, 3, 4, 5, 7, 8 CMT4502 v1.22 Table of Contents 1 Introduction 1 2 Product Overview2 2.1 Block Diagram2 2.2 Pin Assignments and Functions3 2.2.1 CMT450

Features

ARM® Cortex™-M0 32-bit processor.
Memory.
512KB in-system flash memory.
128KB ROM.
138KB SRAM, all programmable retention in sleep mode.
8-channel DMA.
33/19 general purpose I/O pins.
All pins can be configured as serial interface and programmable IO MUX function mapping.
All pins can be configured for wake-up.
18 pins for triggering interrupt.
3 quadrature decoder(QDEC).
6-channel PWM.
