CMT-7404 - Hex Inverter

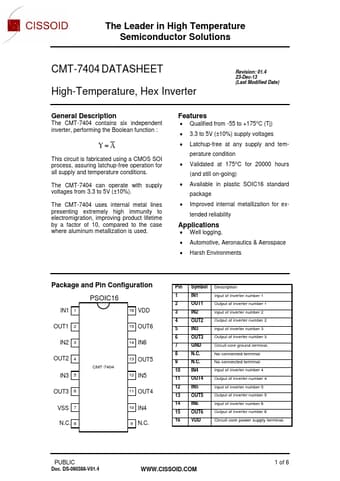

CMT-7404 Datasheet Preview — Preview of CMT-7404 PDF

Datasheet Details

Part number	CMT-7404
Manufacturer	CISSOID
File Size	181.65 KB
Description	Hex Inverter
Datasheet	CMT-7404-CISSOID.pdf

CMT-7404 Product details

Description

The CMT-7404 contains six independent inverter, performing the Boolean function : YA This circuit is fabricated using a CMOS SOI process, assuring latchup-free operation for all supply and temperature conditions.The CMT-7404 can operate with supply voltages from 3.3 to 5V (±10%).The CMT-7404 uses internal metal lines presenting extremely high immunity to electromigration, improving product lifetime by a factor of 10, compared to the case where aluminum metallization is used.

Features

Qualified from -55 to +175°C (Tj).
3.3 to 5V (±10%) supply voltages.
Latchup-free at any supply and tem- perature condition.
Validated at 175°C for 20000 hours (and still on-going).
Available in plastic SOIC16 standard package.
Improved internal metallization for ex- tended reliability.
