HY3208M, HY3208P N-Channel MOSFET

HOOYI

Description

HY3208P/M/B/PS/PM N-Channel Enhancement Mode MOSFET .
DS G TO-220FB-3L DS G TO-220FB-3M DS G TO-263-2L Applications. Power Management for Inverter Systems.

📥 Download Datasheet

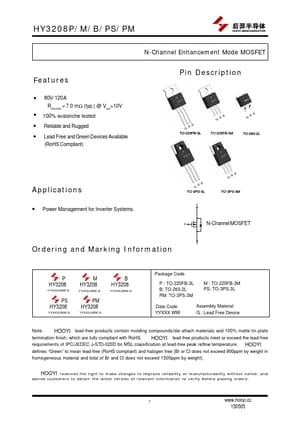

HY3208M Datasheet Preview — This datasheet PDF includes multiple part numbers: HY3208M, HY3208P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HY3208M, HY3208P
Manufacturer: HOOYI
File Size: 4.68 MB
Datasheet: HY3208P-HOOYI.pdf
Description: N-Channel MOSFET
Note: This datasheet PDF includes multiple part numbers: HY3208M, HY3208P.
Please refer to the document for exact specifications by model.

Features

* 80V/120A R= DS(ON) 7.0 mΩ (typ. ) @ V =10V GS
* 100% avalanche tested
* Reliable and Rugged

Applications

* Power Management for Inverter Systems. DS G TO-3PS-3L D DS G TO-3PS-3M G N-Channel MOSFET Ordering and Marking Information S P HY3208 YYÿ XXXJWW G PS HY3208 YYÿ XXXJWW G M HY3208 YYÿ XXXJWW G PM HY3208 YYÿ XXXJWW G B HY3208 YYÿ XXXJWW G Package Code P : TO-220FB-3L B: TO-263-2L P
