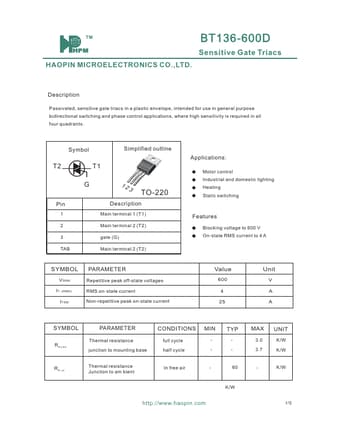

BT136-600D Datasheet (HAOPIN) - Sensitive Gate Triacs

BT136-600D, Sensitive Gate Triacs

Passivated, sensitive gate triacs in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Symbol T2 T1 Simplified outline Pin 1 2 3 TAB G 1 2 3 TO-220 Description Main termin

BT136-600D Features

* Blocking voltage to 600 V On-state RMS current to 4 A Value 600 4 25 Unit V A A SYMBOL Rth j-mb PARAMETER Thermal resistance junction to mounting base CONDITIONS full cycle half cycle MIN - TYP - MAX 3.0 3.7 UNIT K/W K/W Rth j-a Thermal resistance Junction to am bient In free air - 60
