BT136-500 Triacs

NXP

BT136-500 Description

Philips Semiconductors Product specification Triacs BT136 series GENERAL .
Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability.

BT136-500 Applications

* requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching. QUICK REFERENCE DATA SYMBOL PARAMETER BT136BT136BT136Repetitive peak off-state vol

📥 Download Datasheet

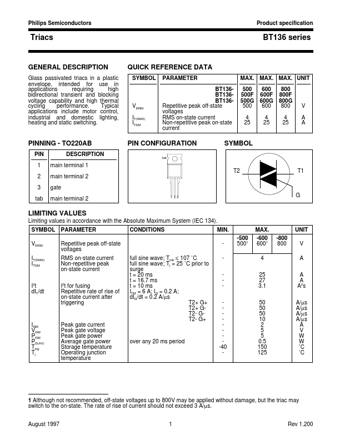

BT136-500 Datasheet Preview — Preview of BT136-500 PDF

Datasheet Details

Part number: BT136-500
Manufacturer: NXP ↗
File Size: 45.82 KB
Datasheet: BT136-500_PhilipsSemiconductors.pdf
Description: Triacs
