MCR25M, MCR25D - SCR

HAOPIN MICROELECTRONICS

📥 Download Datasheet

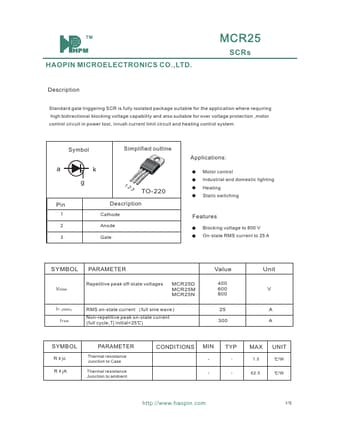

MCR25M Datasheet Preview — This datasheet PDF includes multiple part numbers: MCR25M, MCR25D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MCR25M, MCR25D
Manufacturer	HAOPIN MICROELECTRONICS
File Size	441.97 KB
Description	SCR
Datasheet	MCR25D-HAOPINMICROELECTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: MCR25M, MCR25D. Please refer to the document for exact specifications by model.

MCR25M Product details

Description

Standard gate triggering SCR is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system.

Features

Blocking voltage to 800 V On-state RMS current to 25 A SYMBOL.
