HM24C512, HM24C128 EEPROM

HM24C512 Description

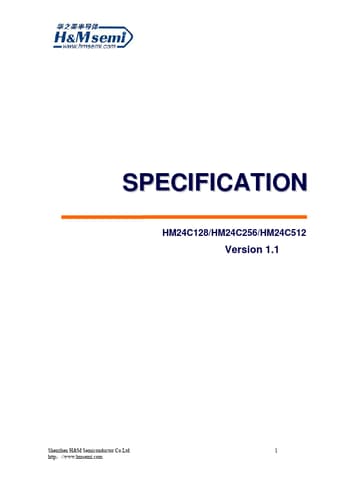

SPECIFICATION HM24C128/HM24C256/HM24C512 Version 1.1 Shenzhen H&M Semiconductor Co.Ltd 1 http：//www.hmsemi.com ▉.
The HM24C128/HM24C256/HM24C512 provides 131,072/262,144 /524,288bits of serial electrically erasable and programmable read-only memory (EEPROM) organi.

HM24C512 Features

*  Low-voltage Operation
* 1.7 (VCC = 1.7V to 5.5V)
*  Low-Power Devices (ISB = 6 µA @ 5.5V) Available
*  Operating Ambient Temperature: -40°C to +85°C
*  Internally Organized 16,384 X 8 (128K), 32,768 X 8 (256K),65,536X8(512K bits)
*  Two-wire Serial Interface
*  Sch

HM24C512 Applications

* where low-power and low-voltage operation are essential. The HM24C128/HM24C256/HM24C512 is available in space-saving 8-lead PDIP, 8-lead SOP, and TSSOP packages and is accessed via a Two-wire serial interface. In addition, the HM24C128/HM24C256/HM24C512 is available in 1.7V (1.7V to 5.5V)
* Pin C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HM24C512, HM24C128. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM24C512, HM24C128
Manufacturer
H&M semi
File Size
578.53 KB
Datasheet
HM24C128-HMsemi.pdf
Description
EEPROM
Note
This datasheet PDF includes multiple part numbers: HM24C512, HM24C128.
Please refer to the document for exact specifications by model.
