HMS135N85 - N-Channel Super Trench II Power MOSFET

H&M Semiconductor

📥 Download Datasheet

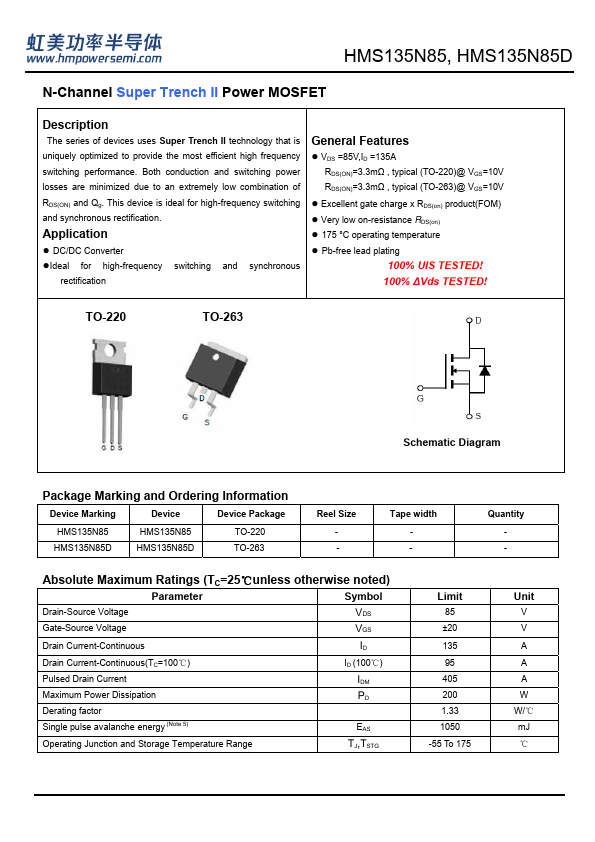

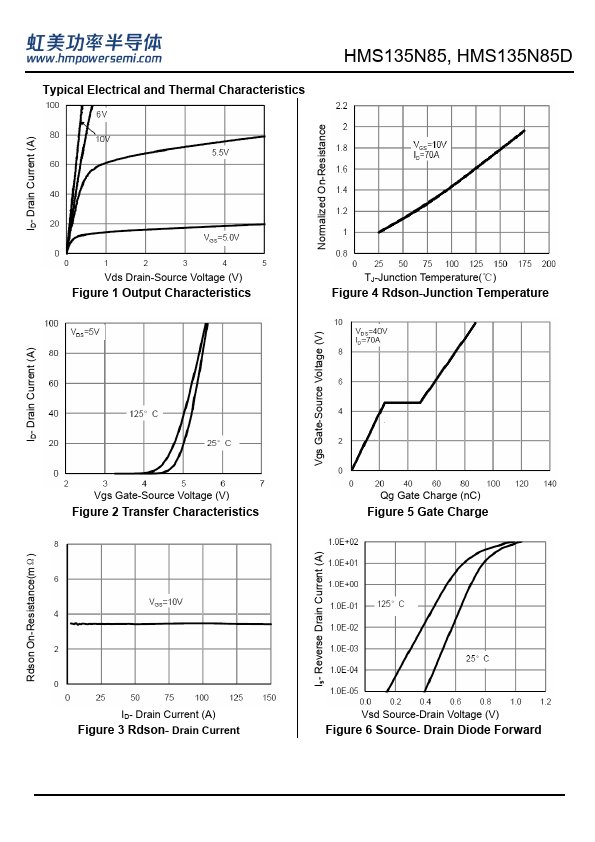

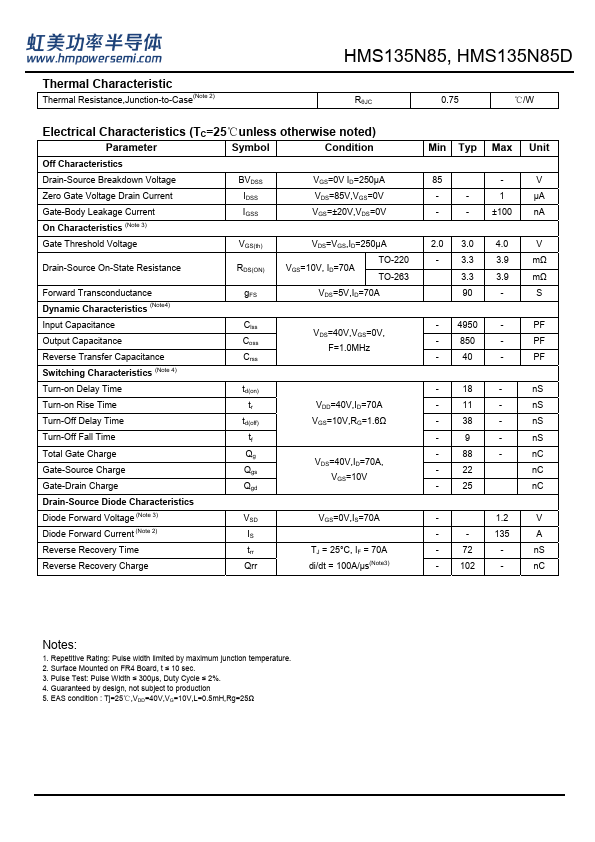

HMS135N85 Datasheet Preview — Preview of HMS135N85 PDF

Datasheet Details

Part number	HMS135N85
Manufacturer	H&M Semiconductor
File Size	639.52 KB
Description	N-Channel Super Trench II Power MOSFET
Datasheet	HMS135N85-HMSemiconductor.pdf

HMS135N85 Product details

Description

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg.This device is ideal for high-frequency switching and synchronous rectification.Application DC/DC Converter Ideal for high-frequency switching and synchronous rectification General

Features

VDS =85V,ID =135A RDS(ON)=3.3mΩ , typical (TO-220)@ VGS=10V RDS(ON)=3.3mΩ , typical (TO-263)@ VGS=10V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
175 °C operating temperature.
Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220 TO-263 Schematic Diagram Package Marking and Ordering Information Device Marking Device Device Package HMS135N85 HMS135N85 TO-220 HMS135N85D HMS135N85D TO-263 Reel Size - Tape width -.
