HMS11N70K - 700V N-Channel Super Junction MOSFET

H&M Semiconductor

📥 Download Datasheet

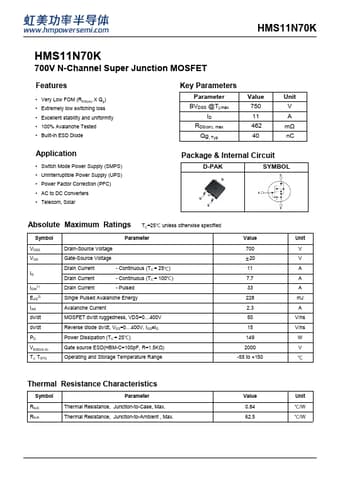

HMS11N70K Datasheet Preview — Preview of HMS11N70K PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HMS11N70K
Manufacturer	H&M Semiconductor
File Size	542.91 KB
Description	700V N-Channel Super Junction MOSFET
Datasheet	HMS11N70K-HMSemiconductor.pdf

HMS11N70K Product details

Features

Very Low FOM (RDS(on) X Qg).
Extremely low switching loss.
Excellent stability and uniformity.
100% Avalanche Tested.
Built-in ESD Diode Key Parameters Parameter BVDSS @Tj,max ID RDS(on), max Qg, Typ Value 750 11 462 40 Unit V A mΩ nC.
