HM7002KR - N-Channel Enhancement Mode Power MOSFET

Features

  • VDS = 60V,ID = 0.5A RDS(ON) < 3Ω @ VGS=5V RDS(ON) < 2Ω @ VGS=10V ESD Rating：HBM 2300V.
  • High power and current handing capability.
  • Lead free product is acquired.
  • Surface mount package Schematic diagram 3D.

📥 Download Datasheet

Datasheet Details

Part number HM7002KR
Manufacturer H&M Semiconductor
File Size 532.57 KB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet HM7002KR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HM7002 N-Channel 60V MOSFET VBsemi
HM70 PRECISION METAL FILM RESISTORS RCD
HM70P03 P-Channel MOSFET H&M semi
HM70P04K P-Channel 40V MOSFET VBsemi
HM7136 Adjustable Constant Current LED Driver H&M semi

Other Datasheets by H&M Semiconductor

Part Number Description
HM7002K Small Signal MOSFET
HM7002KDM 60V 300mA Small Signal MOSFET
HM7002 N-Channel Enhancement Mode Power MOSFET
HM7002B N-Channel Enhancement Mode Power MOSFET
HM7002JR Small Signal MOSFET

Full PDF Text Transcription

Click to expand full text

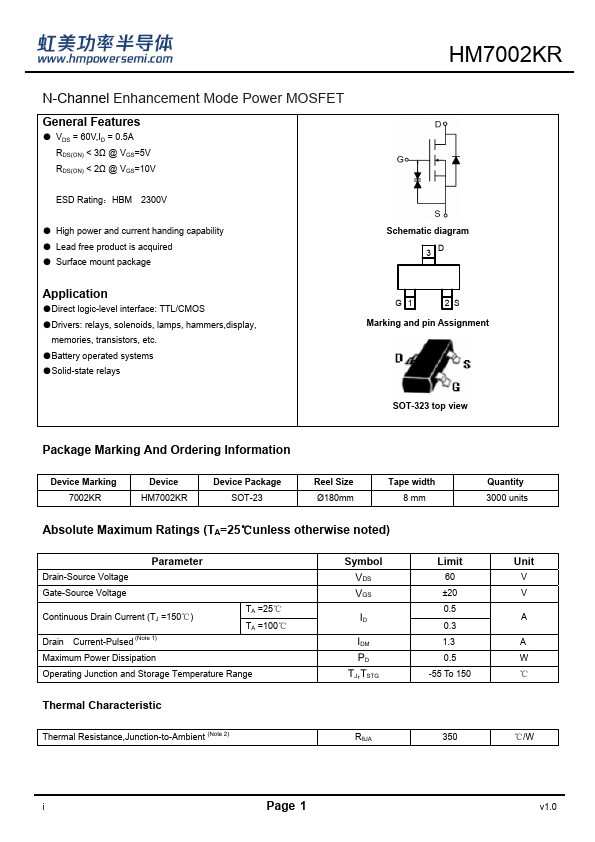

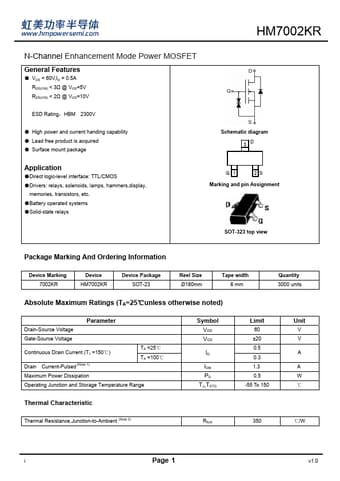

HM7002KR N-Channel Enhancement Mode Power MOSFET General Features ● VDS = 60V,ID = 0.5A RDS(ON) < 3Ω @ VGS=5V RDS(ON) < 2Ω @ VGS=10V ESD Rating：HBM 2300V ● High power and current handing capability ● Lead free product is acquired ● Surface mount package Schematic diagram 3D Application ●Direct logic-level interface: TTL/CMOS ●Drivers: relays, solenoids, lamps, hammers,display, memories, transistors, etc.
