HM4805B - Dual P-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

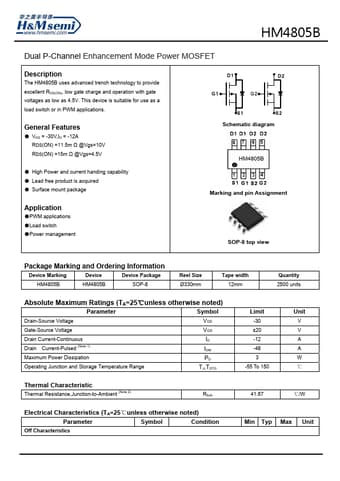

HM4805B Datasheet Preview — Preview of HM4805B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HM4805B
Manufacturer	H&M Semiconductor
File Size	570.35 KB
Description	Dual P-Channel Enhancement Mode Power MOSFET
Datasheet	HM4805B-HMSemiconductor.pdf

HM4805B Product details

Description

The HM4805B uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -12A RDS(ON) =11.5m Ω @Vgs=10V RDS(ON) =15m Ω @Vgs=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface mount package.
