HM35P06 P-Channel Enhancement Mode Power MOSFET

HM35P06 Description

P-Channel Enhancement Mode Power MOSFET .
The HM35P06 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge .

HM35P06 Features

* VDS =-60V,ID =-35A RDS(ON)

📥 Download Datasheet

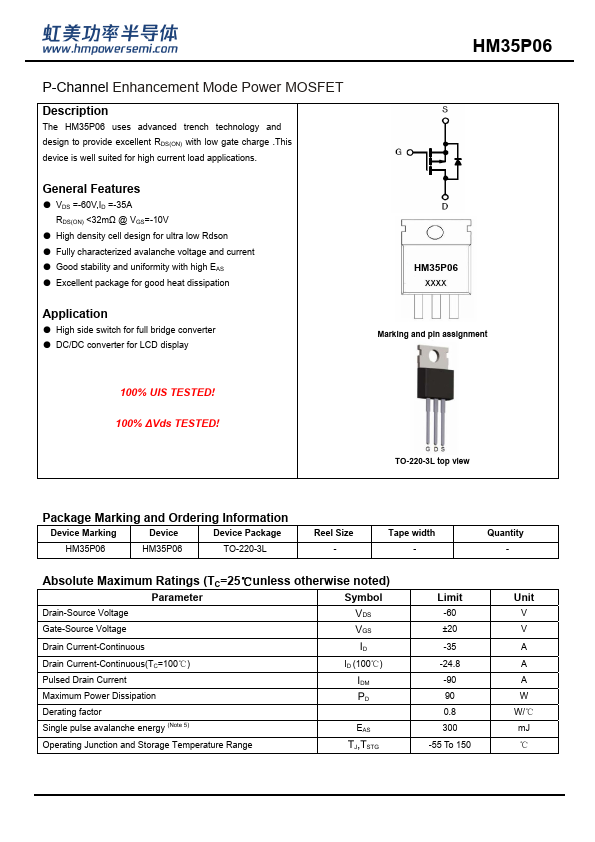

Preview of HM35P06 PDF

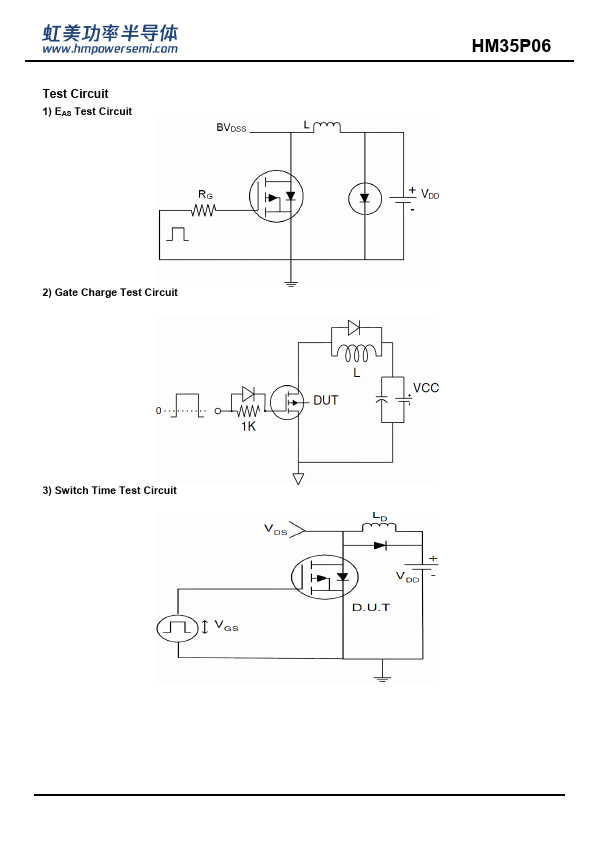

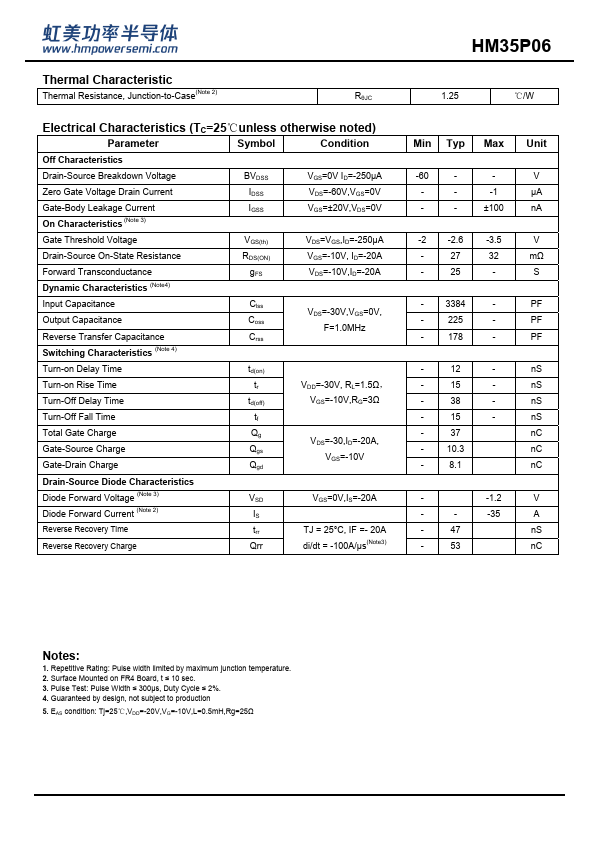

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM35P06
Manufacturer
H&M Semiconductor
File Size
738.75 KB
Datasheet
HM35P06-HMSemiconductor.pdf
Description
P-Channel Enhancement Mode Power MOSFET
