HM25P03Q P-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

HM25P03Q Description

+034 P-Channel Enhancement Mode Power MOSFET .
The H034 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

HM25P03Q Features

* V S = -30V,I = -25A D D RDS(ON) < 35mΩ @ VGS=-4.5V RDS(ON) < 20mΩ @ VGS=-10V
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

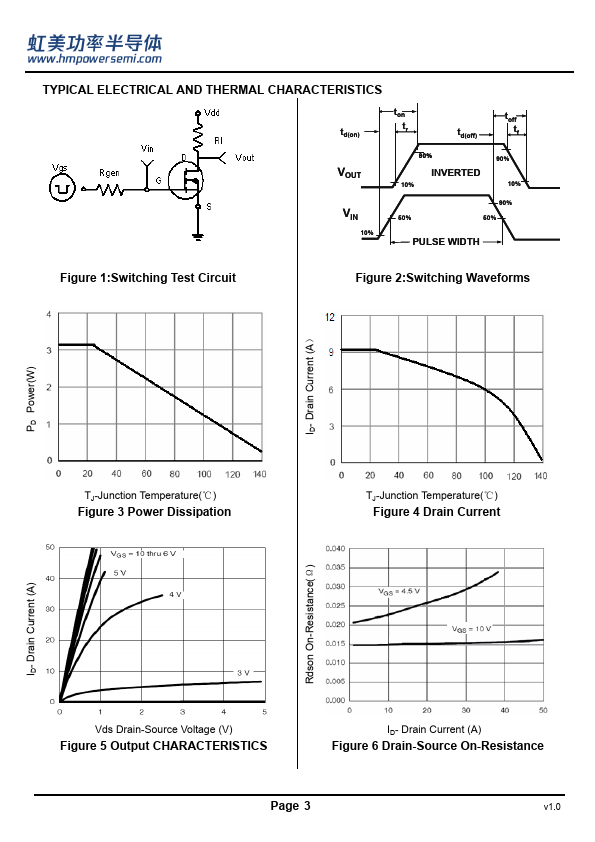

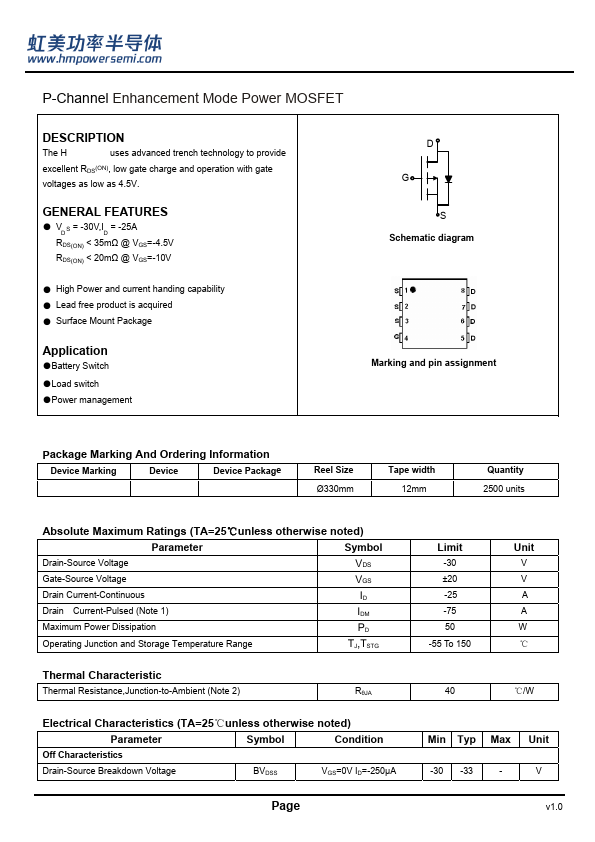

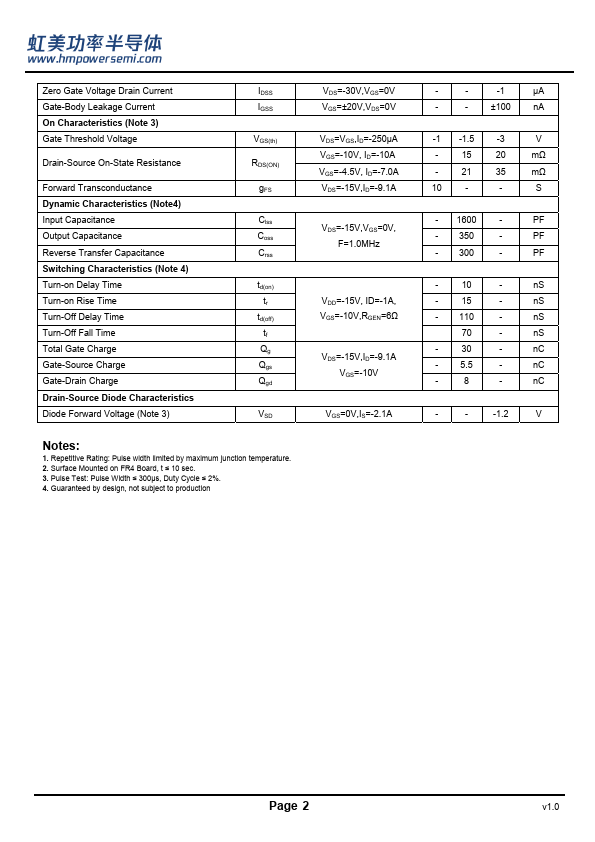

HM25P03Q Datasheet Preview — Preview of HM25P03Q PDF

Datasheet Details

Part number: HM25P03Q
Manufacturer: H&M Semiconductor
File Size: 517.40 KB
Datasheet: HM25P03Q-HMSemiconductor.pdf
Description: P-Channel Enhancement Mode Power MOSFET
