Part number:
HM2319PR
Manufacturer:
H&M Semiconductor
File Size:
555.08 KB
Description:
P-channel enhancement mode power mosfet.
Datasheet Details

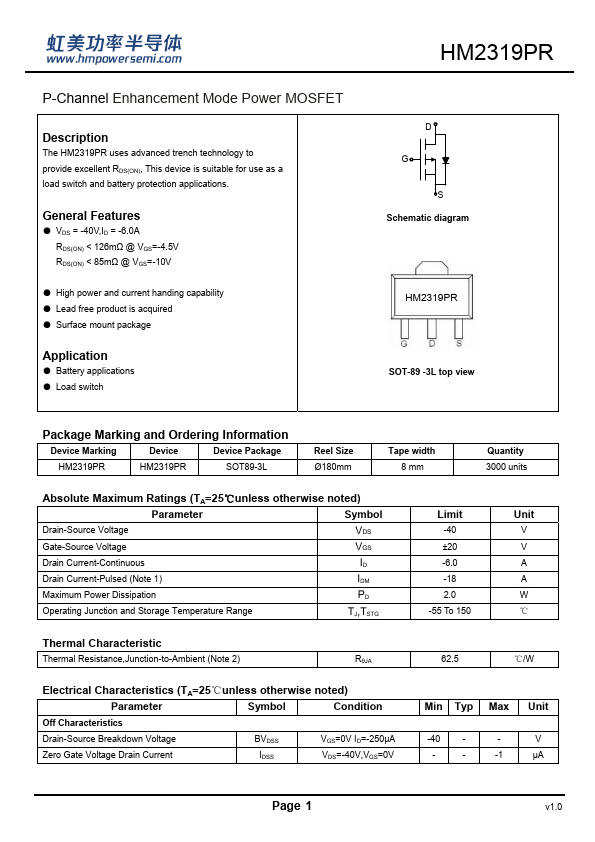

HM2319PR Features
* VDS = -40V,ID = -6.0A RDS(ON) < 126mΩ @ VGS=-4.5V RDS(ON) < 85mΩ @ VGS=-10V
* High power and current handing capability
* Lead free product is acquired
* Surface mount package Application
* Battery applications
* Load switch HM2319PR D G S Schematic diagram HM2319PR SOT-89
Datasheet Details
HM2319PR
H&M Semiconductor
555.08 KB
P-channel enhancement mode power mosfet.
