SB29, SB22 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Gulf Semiconductor

Description

SB22 THRU SB210 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE: 20 to 100V CURRENT: 2.0A .

📥 Download Datasheet

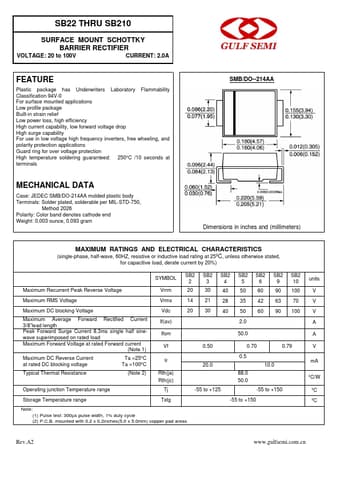

SB29 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB29, SB22. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SB29, SB22
Manufacturer: Gulf Semiconductor
File Size: 120.57 KB
Datasheet: SB22-GulfSemiconductor.pdf
Description: SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SB29, SB22.
Please refer to the document for exact specifications by model.

Applications

* Low profile package Built-in strain relief Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage high frequency inverters, free wheeling, and polarity protection applications Guard ring for over voltage protection High temperat
