G1132F ANALOG PWM

G1132F Description

G1132F High Precision CC/CV Primary-Side PWM Power Switch ANALOG PWM IC 1.0 General .
G1132F is a high performance offline PWM Power switch for low power AC/DC charger and adaptor applications up to 5W.

G1132F Features

* including Cycle-by-Cycle current limiting, VDD OVP, V

G1132F Applications

* up to 5W. It operates in primary-side regulation. Consequently, opto-coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated as shown In the Fig.1. In CC control,the current and output power setting can be adjusted externally by the sen

📥 Download Datasheet

Preview of G1132F PDF

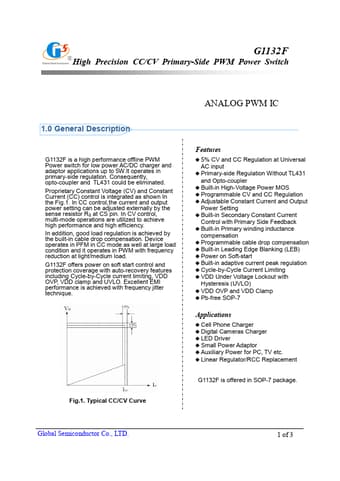

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
G1132F
Manufacturer
Global Semiconductor
File Size
360.62 KB
Datasheet
G1132F-GlobalSemiconductor.pdf
Description
ANALOG PWM
