P4KE200 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

General Semiconductor

📥 Download Datasheet

P4KE200 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR by General Semiconductor - Datasheet Preview — Datasheet preview – P4KE200

Datasheet Details

Part number	P4KE200
Manufacturer	General Semiconductor
File Size	55.43 KB
Description	TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P4KE200 Datasheet

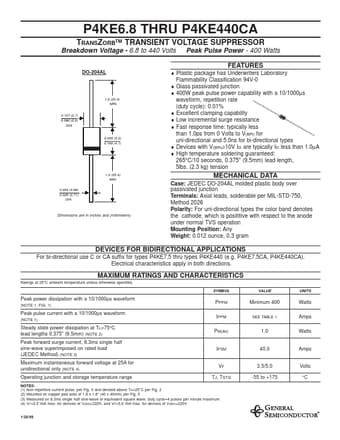

Additional preview pages of the P4KE200 datasheet.

Product details

Features

1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1).
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
400W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for uni-directional and 5.0ns for bi-.
