P4KE10 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

Features

  • 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1).
  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • Glass passivated junction.
  • 400W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
  • Excellent clamping capability.
  • Low incremental surge resistance.
  • Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for uni-directional and 5.0ns for bi-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4KE10 400 Watt Transient Voltage Suppressor Microsemi
P4KE10 Transient Voltage Suppressors HITANO
P4KE10 GLASS PASSIVATED UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS LITE-ON
P4KE10 TRANSIENT VOLTAGE SUPPRESSOR Dc Components
P4KE10 TRANISENT VOLTAGE SUPPRESSOR Digitron Semiconductors

Other Datasheets by General Semiconductor (now Vishay)

Part Number Description
P4KE100 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
P4KE11 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
P4KE110 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
P4KE12 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
P4KE120 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

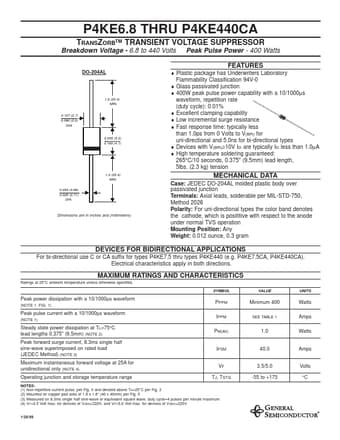

P4KE6.8 THRU P4KE440CA TRANSZORB™ TRANSIENT VOLTAGE SUPPRESSOR Breakdown Voltage - 6.8 to 440 Volts DO-204AL Peak Pulse Power - 400 Watts FEATURES 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1) ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ Glass passivated junction ♦ 400W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01% ♦ Excellent clamping capability ♦ Low incremental surge resistance ♦ Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for uni-directional and 5.0ns for bi-directional types ♦ Devices with V(BR)≥10V ID are typically ID less than 1.0µA ♦ High temperature soldering guaranteed: 265°C/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension 1.0 (25.
