2W01G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Name: 2W01G
SKU: 2W01G-203860

General Semiconductor

The 2W01G by General Semiconductor is a GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	2W01G
Manufacturer	General Semiconductor
File Size	123.49 KB
Description	GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	2W01G_GeneralSemiconductor.pdf

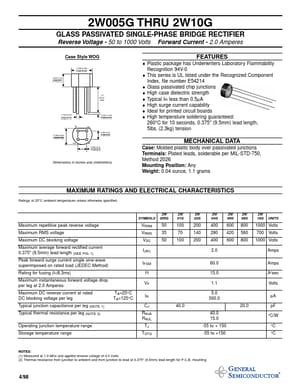

Additional preview pages of the 2W01G datasheet.

1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51).
Plastic package has Underwriters Laboratory Flammability Recognition 94V-0.
This series is UL listed under the Recognized Component Index, file number E54214.
Glass passivated chip junctions.
High case dielectric strength.
Typical IR less than 0.5µA.
High surge current capability.
Ideal for printed circuit boards.
High temperature soldering guaranteed:.
