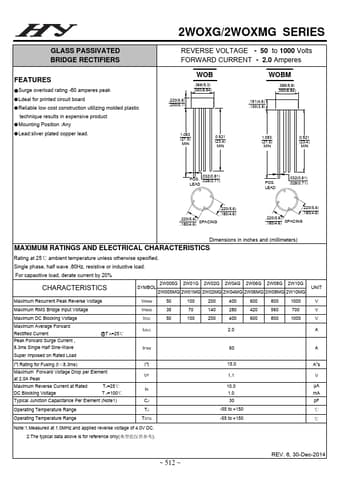

GLASS PASSIVATED BRIDGE RECTIFIERS
FEATURES
●Surge overload rating -60 amperes peak ●Ldeal for printed circuit board ●Reliable low cost construction utilizing molded plastic
technique results in expensive product ●Mounting Position :Any ●Lead:sliver plated copper lead.
2WOXG/2WOXMG SERIES
REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 2.0 Amperes
.220(5.6) .200(5.1)
WOB
.366(9.3) .350(8.84)
WOBM
.386(9.8) .350(8.84)
.181(4.6) .150(3.8)
1.083 (27.5) MIN
0.921 (23.4) MIN
1.083 (27.5) MIN
0.921 (23.4) MIN
POS.
.032(0.81) .028(0.71)
LEAD
POS. LEAD
.032(0.81) .028(0.71)
.220(5.6)
.180(4.6)
.220(5.6) .180(4.6)
SPACING
.220(5.6)
.180(4.6)
.220(5.6) .180(4.
2W005G Datasheet
