1N4944GP - GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER

Name: 1N4944GP
SKU: 1N4944GP-119577

General Semiconductor

The 1N4944GP by General Semiconductor is a GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

1N4944GP GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER by General Semiconductor - Datasheet Preview — Official preview page of the **1N4944GP** GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER datasheet (General Semiconductor).

Datasheet Details

Part number	1N4944GP
Manufacturer	General Semiconductor
File Size	60.76 KB
Description	GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER
Datasheet	1N4944GP_GeneralSemiconductor.pdf

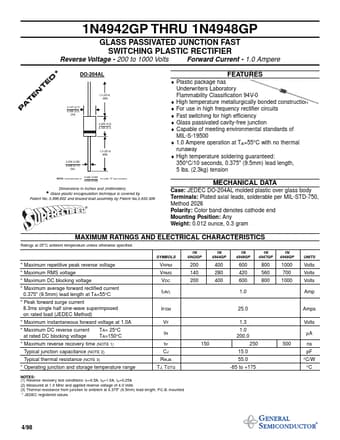

Additional preview pages of the 1N4944GP datasheet.

1N4944GP Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
For use in high frequency rectifier circuits.
Fast switching for high efficiency.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
1.0 Ampere operation at TA=55°C with no thermal runaway.
High temperature soldering guaranteed: 350°C/10 seconds,.
