1N4946GP - GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High temperature metallurgically bonded construction.
  • For use in high frequency rectifier circuits.
  • Fast switching for high efficiency.
  • Glass passivated cavity-free junction.
  • Capable of meeting environmental standards of MIL-S-19500.
  • 1.0 Ampere operation at TA=55°C with no thermal runaway.
  • High temperature soldering guaranteed: 350°C/10 seconds,.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4946GP 1 Amp Fast Recovery Rectifier MCC
1N4946GP Glass Passivated Junction Fast Switching Plastic Rectifier Vishay
1N4946G Glass Passivated Fast Recovery Rectifiers GOOD-ARK
1N4946G 1.0 AMP GLASS PASSIVATED FAST RECOVERY RECTIFIERS Formosa MS
1N4946G FAST RECOVERY GLASS PASSIVATED RECTIFIER Rectron Semiconductor

Other Datasheets by General Semiconductor (now Vishay)

Part Number Description
1N4942GP GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER
1N4944GP GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER
1N4947GP GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER
1N4948GP GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER
1N4933GP GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

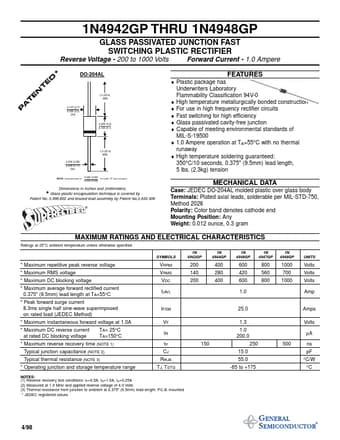

1N4942GP THRU 1N4948GP GLASS PASSIVATED JUNCTION FAST SWITCHING PLASTIC RECTIFIER Reverse Voltage - 200 to 1000 Volts * D DO-204AL Forward Current - 1.0 Ampere FEATURES ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ High temperature metallurgically bonded construction ♦ For use in high frequency rectifier circuits ♦ Fast switching for high efficiency ♦ Glass passivated cavity-free junction ♦ Capable of meeting environmental standards of MIL-S-19500 ♦ 1.0 Ampere operation at TA=55°C with no thermal runaway ♦ High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension E N T E P A T 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1) 1.0 (25.4) MIN. 0.034 (0.86) 0.028 (0.71) DIA.
