MBRF500100R, MBRF50045 - Silicon Power Schottky Diode

Name: MBRF500100R
SKU: MBRF500100R-972617

GeneSiC

The MBRF500100R by GeneSiC is a Silicon Power Schottky Diode. Below is the official datasheet preview.

Datasheet Details

Part number	MBRF500100R, MBRF50045
Manufacturer	GeneSiC
File Size	461.03 KB
Description	Silicon Power Schottky Diode
Datasheet	MBRF50045-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: MBRF500100R, MBRF50045. Please refer to the document for exact specifications by model.

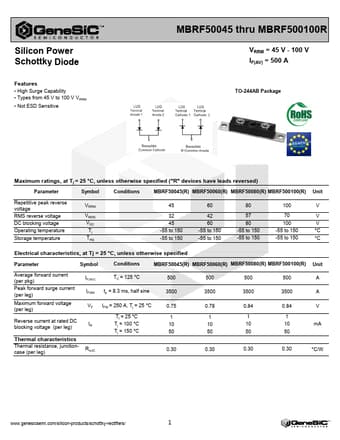

Additional preview pages of the MBRF500100R datasheet.

High Surge Capability.
Types from 45 V to 100 V VRRM.
Not ESD Sensitive MBRF50045 thru MBRF500100R VRRM = 45 V - 100 V IF(AV) = 500 A TO-244AB Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MBRF50045(R) MBRF50060(R) MBRF50080(R) MBRF500100(R) Unit Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Operating temperature Storage temperature VRRM VRMS VDC Tj Tst.
