MBR300100CTR - Silicon Power Schottky Diode

Product Overview

GeneSiC

Part number	MBR300100CTR
Manufacturer	GeneSiC
File Size	711.34 KB
Description	Silicon Power Schottky Diode
Datasheet	MBR300100CTR Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR300100CTR, MBR30045CT. Please refer to the document for exact specifications by model.

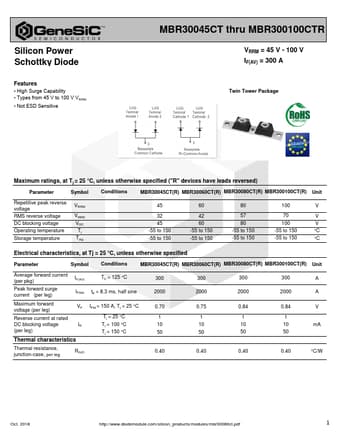

Additional preview pages of the MBR300100CTR datasheet.

High Surge Capability.
Types from 45 V to 100 V VRRM.
Not ESD Sensitive MBR30045CT thru MBR300100CTR VRRM = 45 V - 100 V IF(AV) = 300 A Twin Tower Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MBR30045CT(R) MBR30060CT(R) MBR30080CT(R) MBR300100CT(R) Unit Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Operating temperature Storage temperature VRRM VRMS VD.
