BR305 - Single Phase Glass Passivated Silicon Bridge Rectifier

GeneSiC

📥 Download Datasheet

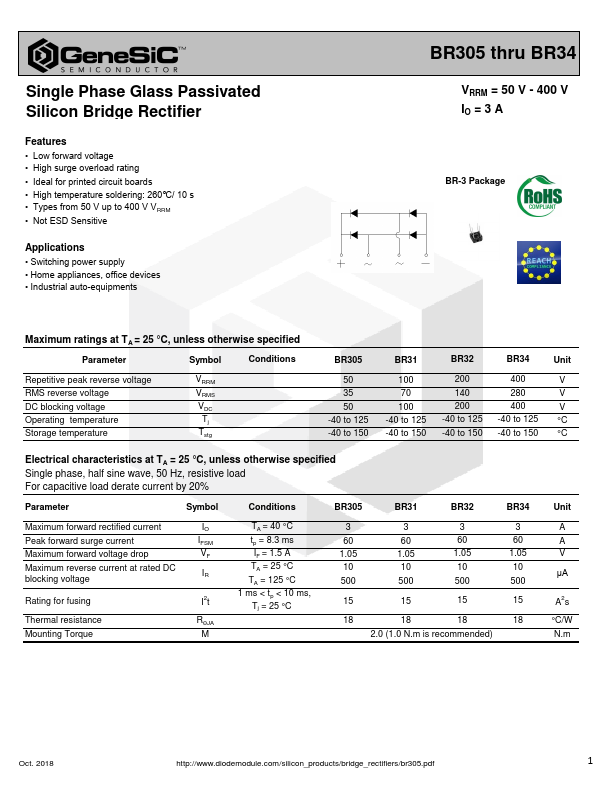

BR305 Datasheet Preview — Preview of BR305 PDF

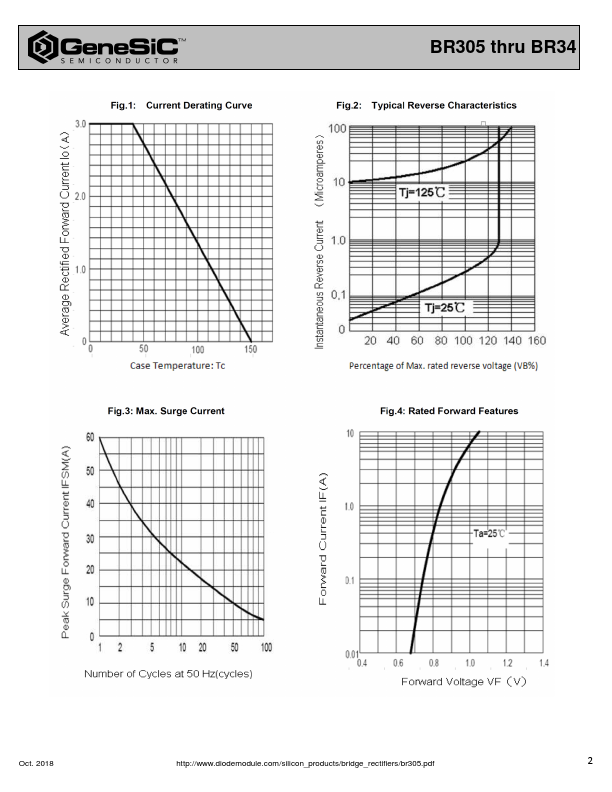

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BR305
Manufacturer	GeneSiC
File Size	1.27 MB
Description	Single Phase Glass Passivated Silicon Bridge Rectifier
Datasheet	BR305-GeneSiC.pdf

BR305 Product details

Features

Low forward voltage.
High surge overload rating.
Ideal for printed circuit boards.
High temperature soldering: 260⁰C/ 10 s.
Types from 50 V up to 400 V VRRM.
Not ESD Sensitive.
