BR32, BR305 - Single Phase Glass Passivated Silicon Bridge Rectifier

GeneSiC

📥 Download Datasheet

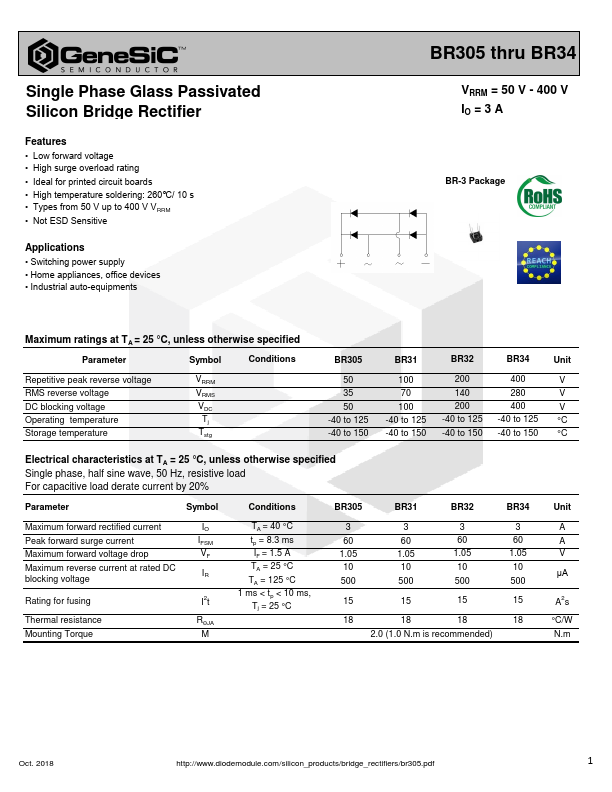

BR32 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR32, BR305. Please refer to the document for exact specifications by model.

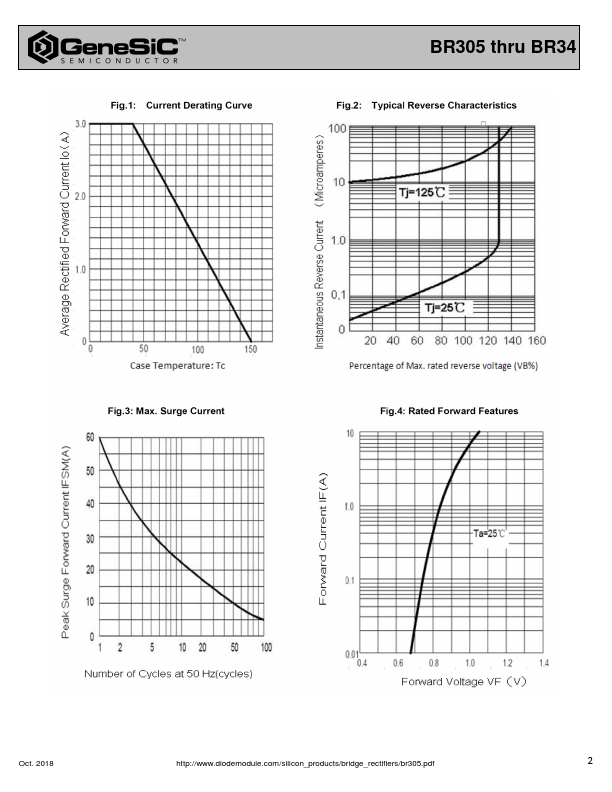

datasheet Preview Page 2

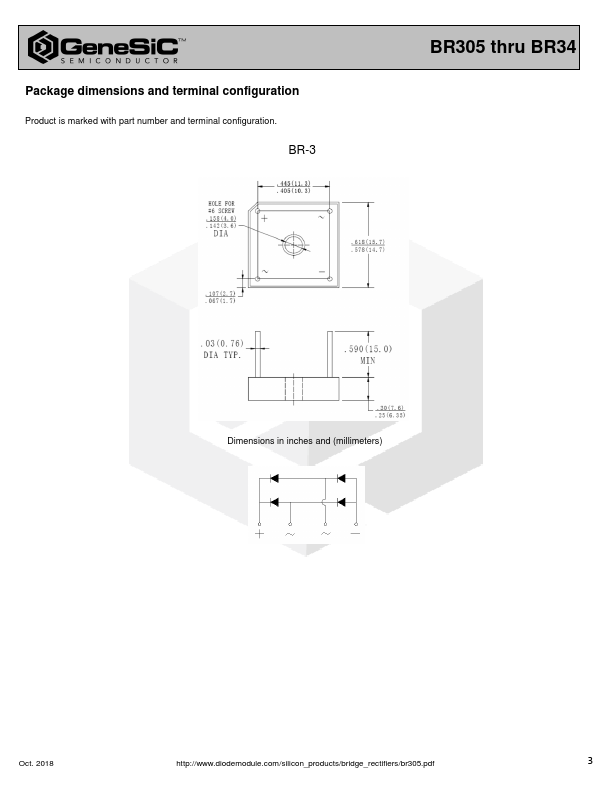

datasheet Preview Page 3

Datasheet Details

Part number	BR32, BR305
Manufacturer	GeneSiC
File Size	1.27 MB
Description	Single Phase Glass Passivated Silicon Bridge Rectifier
Datasheet	BR305-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: BR32, BR305. Please refer to the document for exact specifications by model.

BR32 Product details

Features

Low forward voltage.
High surge overload rating.
Ideal for printed circuit boards.
High temperature soldering: 260⁰C/ 10 s.
Types from 50 V up to 400 V VRRM.
Not ESD Sensitive.
