1N4595 - Silicon Standard Recovery Diode

Product Overview

GeneSiC

Part number	1N4595
Manufacturer	GeneSiC
File Size	698.66 KB
Description	Silicon Standard Recovery Diode
Datasheet	1N4595 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4595, 1N4594. Please refer to the document for exact specifications by model.

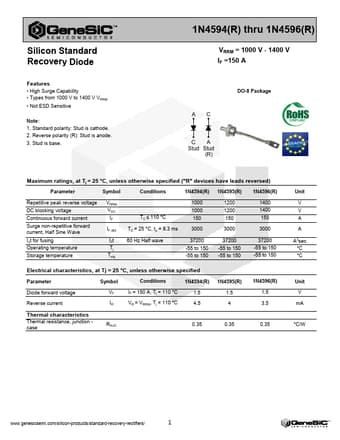

Additional preview pages of the 1N4595 datasheet.

High Surge Capability.
Types from 1000 V to 1400 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. 1N4594(R) thru 1N4596(R) VRRM = 1000 V - 1400 V IF =150 A DO-8 Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions 1N4594(R) 1N4595(R) 1N4596(R) Repetitive peak reverse voltage DC blocking voltage Continuous for.
