1N4590, 1N4588 - Silicon Standard Recovery Diode

Name: 1N4590
SKU: 1N4590-1451670

GeneSiC

The 1N4590 by GeneSiC is a Silicon Standard Recovery Diode. Below is the official datasheet preview.

Datasheet Details

Part number	1N4590, 1N4588
Manufacturer	GeneSiC
File Size	1.71 MB
Description	Silicon Standard Recovery Diode
Datasheet	1N4588-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: 1N4590, 1N4588. Please refer to the document for exact specifications by model.

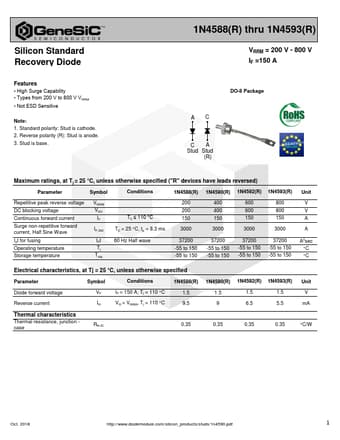

Additional preview pages of the 1N4590 datasheet.

High Surge Capability.
Types from 200 V to 800 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. 1N4588(R) thru 1N4593(R) VRRM = 200 V - 800 V IF =150 A DO-8 Package AC CA Stud Stud (R) Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions 1N4588(R) 1N4590(R) 1N4592(R) 1N4593(R) Unit Repetitive peak reverse voltage DC.
