GM7632 - FIXED MULTI-OUTPUT REGULATOR

Name: GM7632
SKU: GM7632-597520

Gamma Microelectronics

📥 Download Datasheet

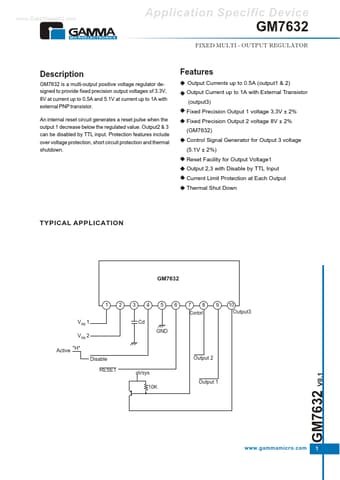

GM7632 Datasheet Preview — Preview of GM7632 PDF

Datasheet Details

Part number	GM7632
Manufacturer	Gamma Microelectronics
File Size	142.93 KB
Description	FIXED MULTI-OUTPUT REGULATOR
Datasheet	GM7632_GammaMicroelectronics.pdf

GM7632 Product details

Description

GM7632 is a multi-output positive voltage regulator designed to provide fixed precision output voltages of 3.3V, 8V at current up to 0.5A and 5.1V at current up to 1A with external PNP transistor.

Features

include over voltage protection, short circuit protection and thermal shutdown. Features Output Currents up to 0.5A (output1 & 2) Output Current up to 1A with External Transistor (output3) Fixed Precision Output 1 voltage 3.3V ± 2% Fixed Precision Output 2 voltage 8V ± 2% (GM7632) Control Signal Generator for Output 3 voltage (5.1V ± 2%) Reset Facility for Output Voltage1 Output 2,3 with Disable by TTL Input Current Limit Protection at Each Output Thermal Shut Down.
