TGBLN6601-5DL8 - Dual N-Channel Enhancement Mode MOSFET

Name: TGBLN6601-5DL8
SKU: TGBLN6601-5DL8-1583840

Galaxy Microelectronics

The TGBLN6601-5DL8 by Galaxy Microelectronics is a Dual N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TGBLN6601-5DL8
Manufacturer	Galaxy Microelectronics
File Size	523.88 KB
Description	Dual N-Channel Enhancement Mode MOSFET
Datasheet	TGBLN6601-5DL8-GalaxyMicroelectronics.pdf

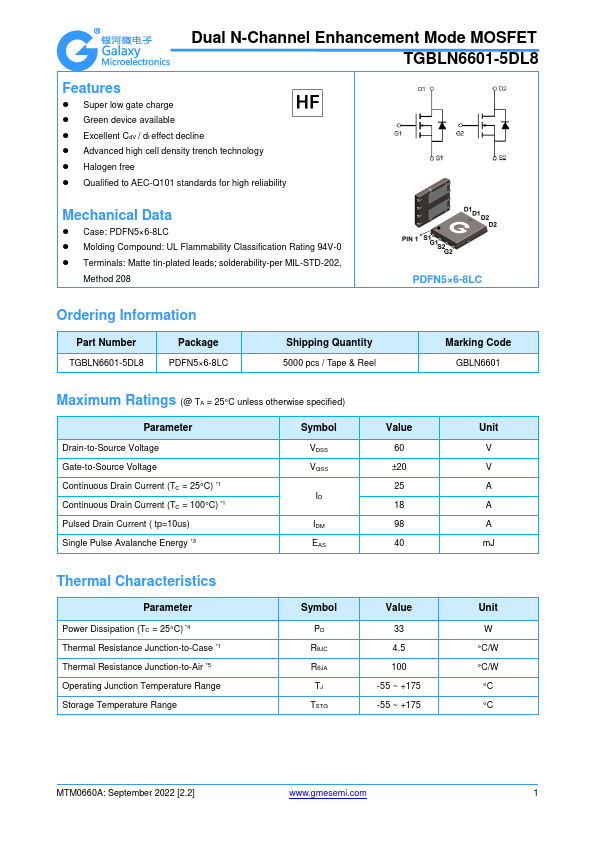

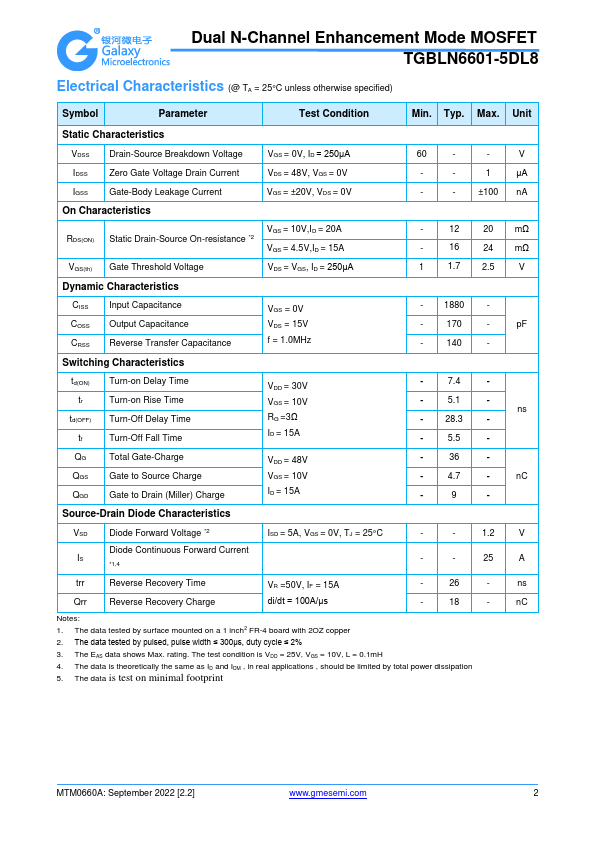

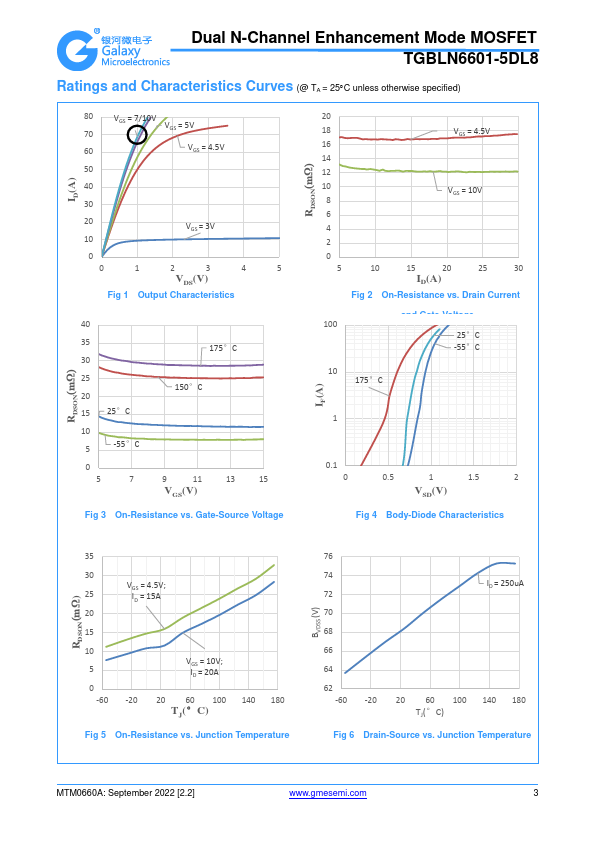

Additional preview pages of the TGBLN6601-5DL8 datasheet.

Super low gate charge.
Green device available.
Excellent CdV / dt effect decline.
Advanced high cell density trench technology.
Halogen free.
Qualified to AEC-Q101 standards for high reliability Mechanical Data.
Case: PDFN5×6-8LC.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 PDFN5×6-8LC Ordering Information Part Number TGBLN6601-5DL8 Package PDFN5×6-8L.
