The GMBD4148 by GTM is a high-speed switching application. Below is the official datasheet preview.
| Part number | GMBD4148 |
|---|---|
| Manufacturer | GTM |
| File Size | 199.92 KB |
| Description | high-speed switching application |
| Datasheet |

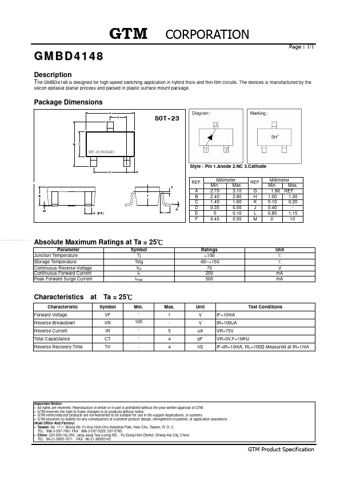

 GMBD4148_GTM.pdf
|
|
|
|
1/1 The GMBD4148 is designed for high-speed switching application in hybrid thick-and thin-film circuits.The devices is manufactured by the silicon epitaxial planar process and packed in plastic surface mount package.Package Dimensions Style : Pin 1.Anode 2.NC 3.Cathode REF.A B C D E F Millimeter Min.Max.2.70 3.10 2.40 2.80 1.40 1.60 0.35 0.50 0 0.10 0.45 0.55 REF.G H K J L M Millimeter Min.Max.1.90 REF.1.00 1.30 0.10 0.20 0.40 0.85 1.15 0 10 www.DataSheet4U.com Absolute Maximum R
