GMBZ5224B, GMBZ5232B - ZENER DIODES

The GMBZ5224B by GTM CORPORATION is a ZENER DIODES. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the GMBZ5224B ZENER DIODES datasheet (GTM CORPORATION).

Datasheet Details

Part number GMBZ5224B, GMBZ5232B
Manufacturer GTM CORPORATION
File Size 889.08 KB
Description ZENER DIODES
Datasheet download datasheet GMBZ5232B_GTMCORPORATION.pdf
Note This datasheet PDF includes multiple part numbers: GMBZ5224B, GMBZ5232B.
Please refer to the document for exact specifications by model.

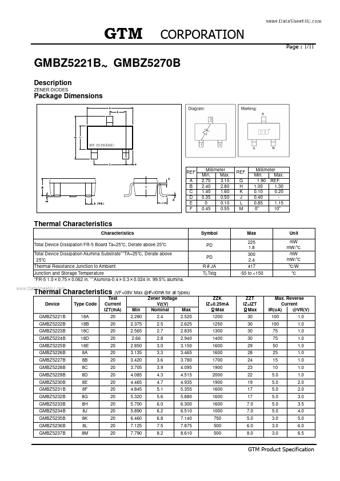

Additional preview pages of the GMBZ5224B datasheet.

GMBZ5224B Product details

Description

ZENER DIODES Package Dimensions REF A B C D E F Millimeter Min.Max.2.70 3.10 2.40 2.80 1.40 1.60 0.35 0.50 0 0.10 0.45 0.55 REF.G H K J L M Millimeter Min.Max.1.90 REF.1.00 1.30 0.10 0.20 0.40 0.85 1.15 0 10 Thermal Characteristics Characteristics Total Device Dissipation FR-5 Board Ta=25 , Derate above 25 Symbol PD PD R JA Tj,Tstg Max 225 1.8 300 2.4 417 -55 to +150 Unit mW mW/ mW mW/ /W Total Device Dissipation Alumina Substrate TA=25 , Derate above 25 Thermal Resistance
