10A05G - GENERAL PURPOSE PLASTIC RECTIFIER

📥 Download Datasheet

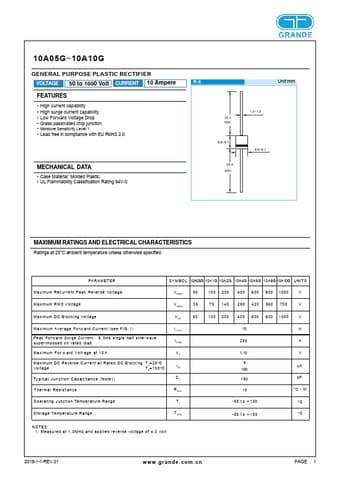

10A05G Datasheet Preview — Preview of 10A05G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	10A05G
Manufacturer	GRANDE
File Size	377.15 KB
Description	GENERAL PURPOSE PLASTIC RECTIFIER
Datasheet	10A05G-GRANDE.pdf

10A05G Product details

Features

High current capability.
High surge current capability.
Low Forward Voltage Drop.
Glass passivated chip junction.
Moisture Sensitivity Level 1.
Lead free in compliance with EU RoHS 2.0 R-6 25.4 MIN. 8.6~9.1 Unit:mm 1.2~1.3 8.6~9.1.
