10A8G - GENERAL PURPOSE PLASTIC RECTIFIER

Download the 10A8G datasheet PDF. This datasheet also covers the 10A05G variant, as both devices belong to the same general purpose plastic rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • High current capability.
  • High surge current capability.
  • Low Forward Voltage Drop.
  • Glass passivated chip junction.
  • Moisture Sensitivity Level 1.
  • Lead free in compliance with EU RoHS 2.0 R-6 25.4 MIN. 8.6~9.1 Unit:mm 1.2~1.3 8.6~9.1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (10A05G-GRANDE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 10A8G
Manufacturer GRANDE
File Size 377.15 KB
Description GENERAL PURPOSE PLASTIC RECTIFIER
Datasheet download datasheet 10A8G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
10A8G STANDARD RECTIFIERS Powersi
10A8G Glass Passivated Rectifiers SMC Diode
10A8G General Purpose Plastic Rectifier Suntan
10A8 SILICON RECTIFIER PAN JIT
10A8 GENERAL PURPOSE RECTIFIER Kingtronics

Other Datasheets by GRANDE

Part Number Description
10A05G GENERAL PURPOSE PLASTIC RECTIFIER
10A10G GENERAL PURPOSE PLASTIC RECTIFIER
10A1G GENERAL PURPOSE PLASTIC RECTIFIER
10A2G GENERAL PURPOSE PLASTIC RECTIFIER
10A4G GENERAL PURPOSE PLASTIC RECTIFIER

Full PDF Text Transcription

Click to expand full text

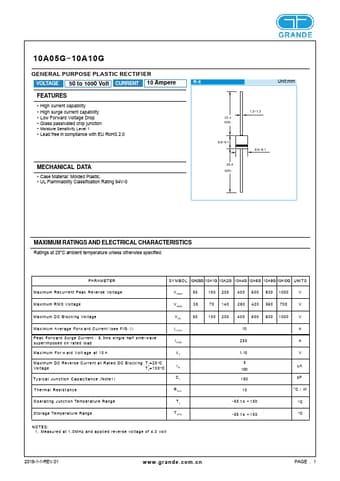

10A05G~10A10G GENERAL PURPOSE PLASTIC RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 10 Ampere FEATURES • High current capability • High surge current capability • Low Forward Voltage Drop • Glass passivated chip junction • Moisture Sensitivity Level 1 • Lead free in compliance with EU RoHS 2.0 R-6 25.4 MIN. 8.6~9.1 Unit:mm 1.2~1.3 8.6~9.1 MECHANICAL DATA 25.4 MIN. • Case Material: Molded Plastic. • UL Flammability Classification Rating 94V-0 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified.
