MSB30B - 3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS

Product Overview

📥 Download Datasheet

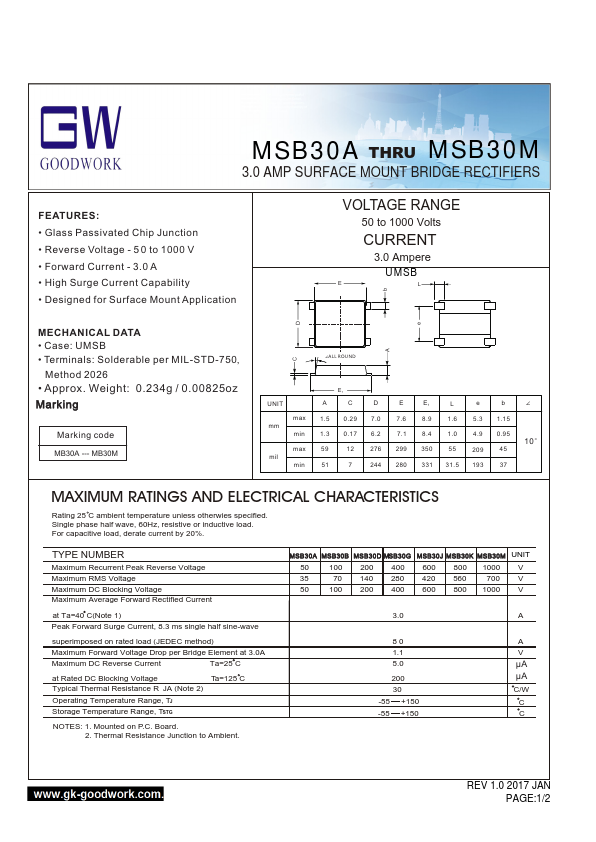

MSB30B 3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS by GOODWORK - Datasheet Preview — Datasheet preview – MSB30B

Datasheet Details

Part number	MSB30B
Manufacturer	GOODWORK
File Size	1.49 MB
Description	3.0 AMP SURFACE MOUNT BRIDGE RECTIFIERS
Datasheet	MSB30B Datasheet
Note	This datasheet PDF includes multiple part numbers: MSB30B, MSB30A. Please refer to the document for exact specifications by model.

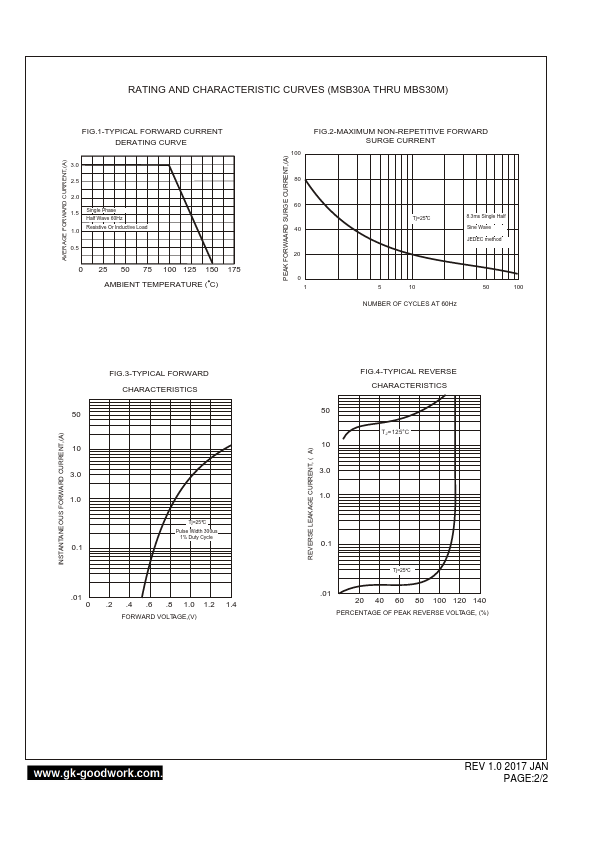

Additional preview pages of the MSB30B datasheet.

Product details

Features

Glass Passivated Chip Junction.
Reverse Voltage - 5 0 to 1000 V.
Forward Current - 3.0 A.
High Surge Current Capability.
Designed for Surface Mount.
