SSF3637S - 30V P-Channel MOSFET

Download the SSF3637S datasheet PDF. This datasheet also covers the SSF3637S-GOOD variant, as both devices belong to the same 30v p-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Description

The SSF3637S uses advanced trench technology to provide excellent RDS(ON) and low gate charge .This device is suitable for use as a load switch or in PWM applications.

Features

  • VDS =- 30V,ID =-10A RDS(ON) < 70mΩ @ VGS=-4.5V RDS(ON) < 45mΩ @ VGS=-10V.
  • High Power and current handing capability.
  • Lead free product.
  • Surface Mount Package D G S Schematic Diagram Marking and Pin Assignment.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SSF3637S-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SSF3637S
Manufacturer GOOD-ARK
File Size 403.76 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet SSF3637S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SSF3637S MOSFET Silikron Semiconductor
SSF3637 MOSFET Silikron Semiconductor
SSF3639C MOSFET Silikron Semiconductor
SSF3604 MOSFET Silikron Semiconductor
SSF3605S MOSFET Silikron Semiconductor

Other Datasheets by GOOD-ARK

Part Number Description
SSF3637 30V Dual P-Channel MOSFET
SSF3639C MOSFET
SSF3605S P-Channel MOSFET
SSF3606 N-Channel MOSFET
SSF3610 30V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

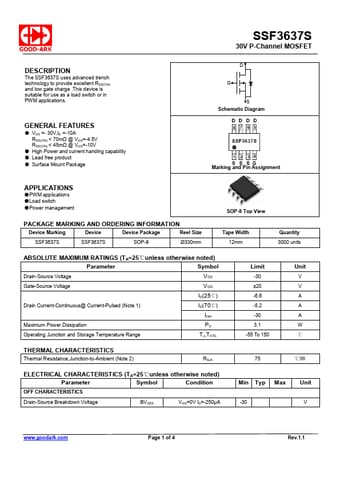

SSF3637S 30V P-Channel MOSFET DESCRIPTION The SSF3637S uses advanced trench technology to provide excellent RDS(ON) and low gate charge .This device is suitable for use as a load switch or in PWM applications. GENERAL FEATURES ● VDS =- 30V,ID =-10A RDS(ON) < 70mΩ @ VGS=-4.
