1N4933 1A Fast Recovery Rectifiers

1N4933 Description

1N4933 thru 1N4937 GOOD-ARK Electronics 1A,50-600V Fast Recovery Rectifiers .
of changes Released Datasheet Modify document format www.

1N4933 Features

* Low leakage current
* Low forward voltage drop
* Glass passivated chip junction

1N4933 Applications

* Moisture sensitivity: level 1, per J-STD-020
* For fast switching and low logic level applications
* High temperature soldering guaranteed: 260℃/10 seconds DO-41/A-405 Applications
* Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless

📥 Download Datasheet

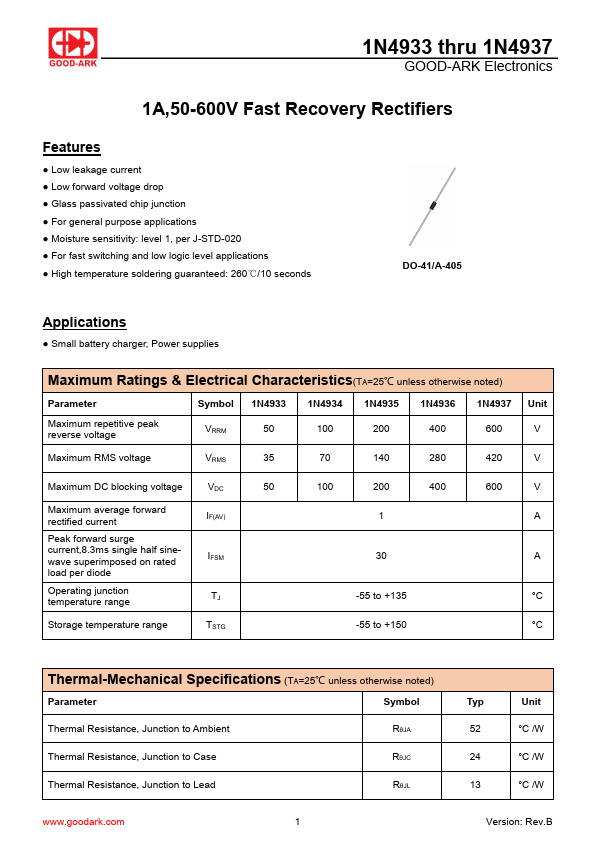

Preview of 1N4933 PDF

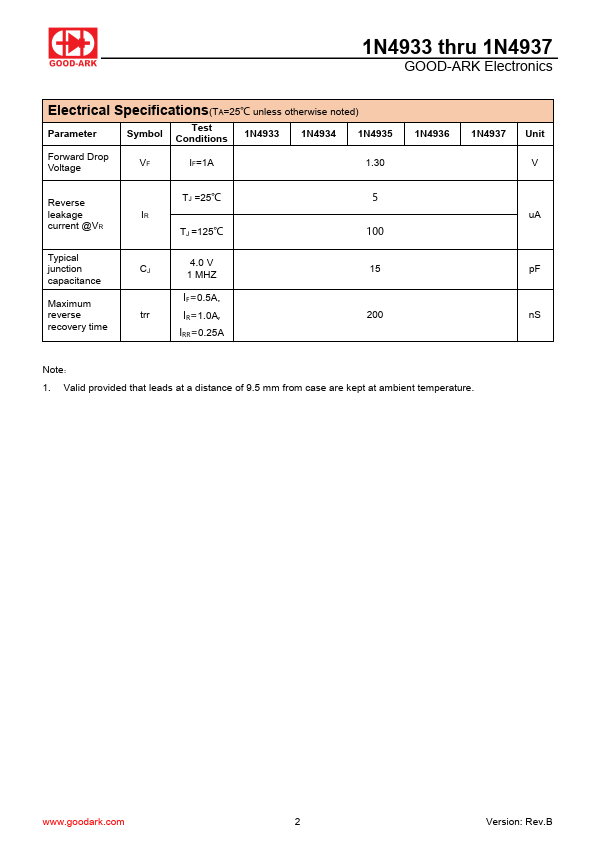

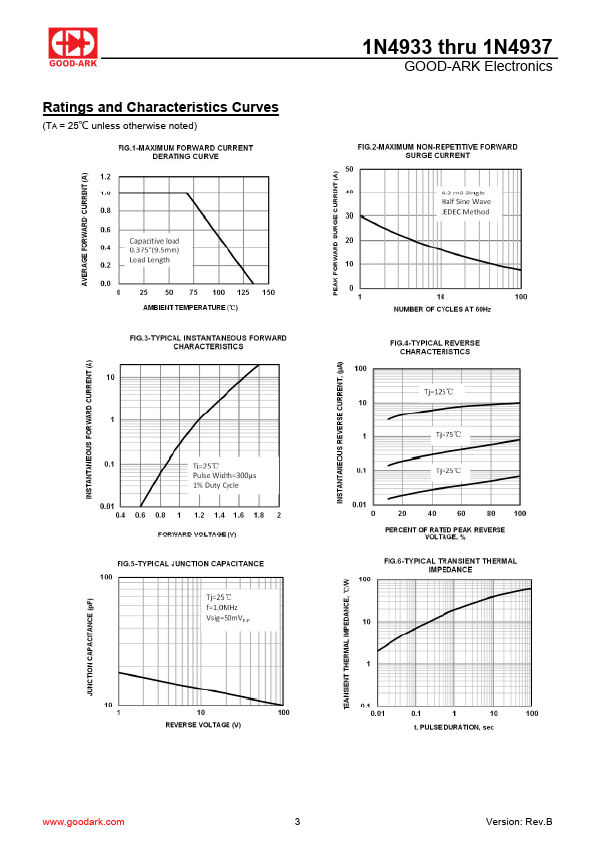

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4933
Manufacturer
GOOD-ARK
File Size
570.40 KB
Datasheet
1N4933-GOODARK.pdf
Description
1A Fast Recovery Rectifiers
