1N4942 1.0 Amp Fast Recovery Rectifiers

1N4942 Description

.

1N4942 Features

* ‹ High switching capability ‹ Low leakage ‹ Low forward voltage drop ‹ High current capability ‹ High surge current capability 1N4942 thru 1N4948 1.0 Amp. Fast Recovery Rectifiers Voltage Range 200 to 1000 Volts Forward Current 1.0 Ampere Mechanical Data ‹ Case: Molded plastic ‹ Epoxy: UL 94V-O ra

📥 Download Datasheet

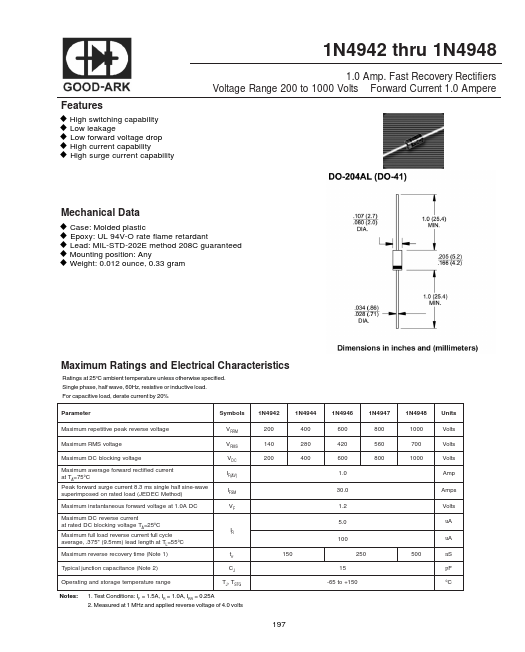

Preview of 1N4942 PDF

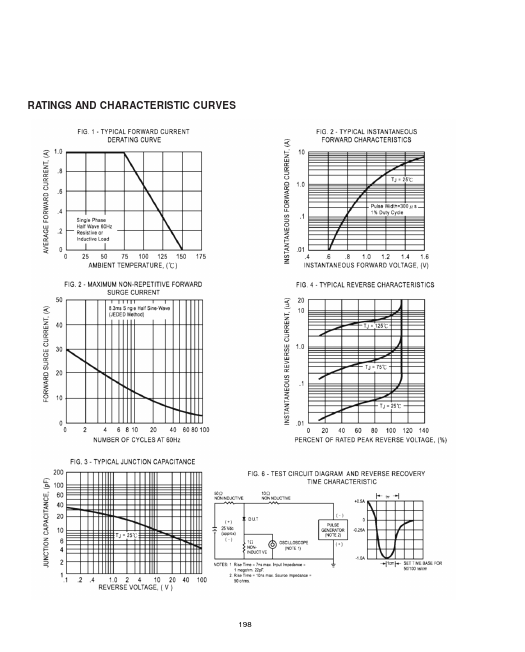

datasheet Preview Page 2

Datasheet Details

Part number
1N4942
Manufacturer
GOOD-ARK
File Size
661.88 KB
Datasheet
1N4942-GOODARK.pdf
Description
1.0 Amp Fast Recovery Rectifiers
