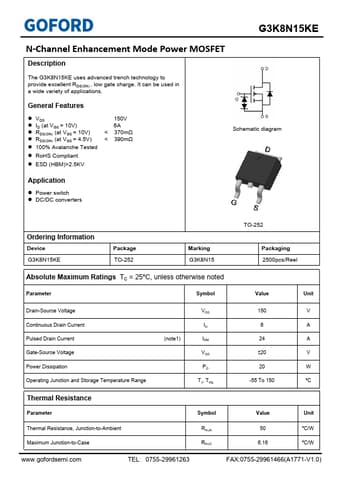

Description
The G3K8N15KE uses advanced trench technology to
provide excellent RDS(ON) , low gate charge.It can be used in a wide variety of applications.General
Features
- l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l RDS(ON) (at VGS = 4.5V)
150V 6A < 370mΩ < 390mΩ
l 100% Avalanche Tested
l RoHS Compliant
l ESD (HBM)>2.5KV
Schematic diagram
Application
l Power switch l DC/DC converters
Ordering Information
Device G3K8N15KE
Package TO-252
Marking G3K8N15
TO-252
Packaging 2500pcs/Reel
Absolute Maximum Ratings TC = 25ºC, unless otherwise noted
Parameter
Symbol
Value
Unit
Drain-Source Voltage Continuous Drain Current Pulsed Drain Current Gate-S.
