3400L - MOSFET

📥 Download Datasheet

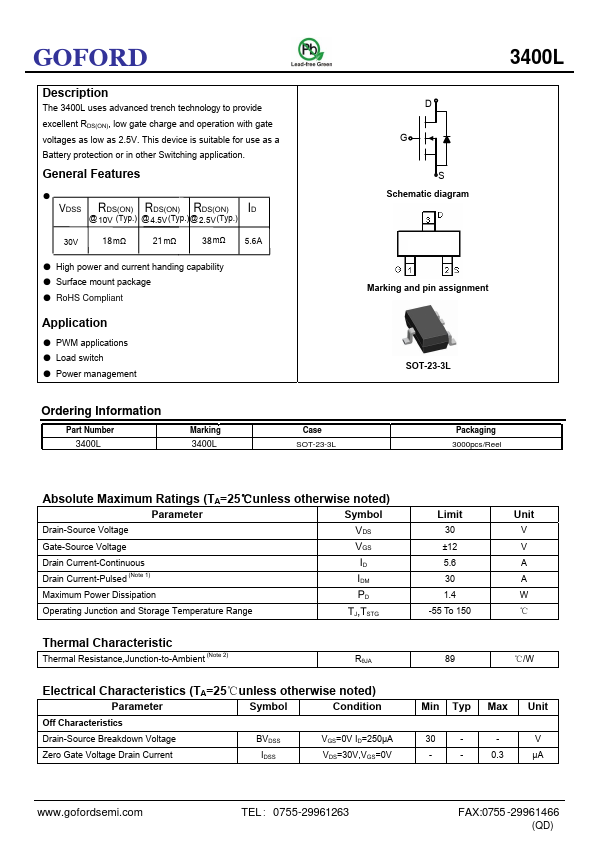

3400L Datasheet Preview — Preview of 3400L PDF

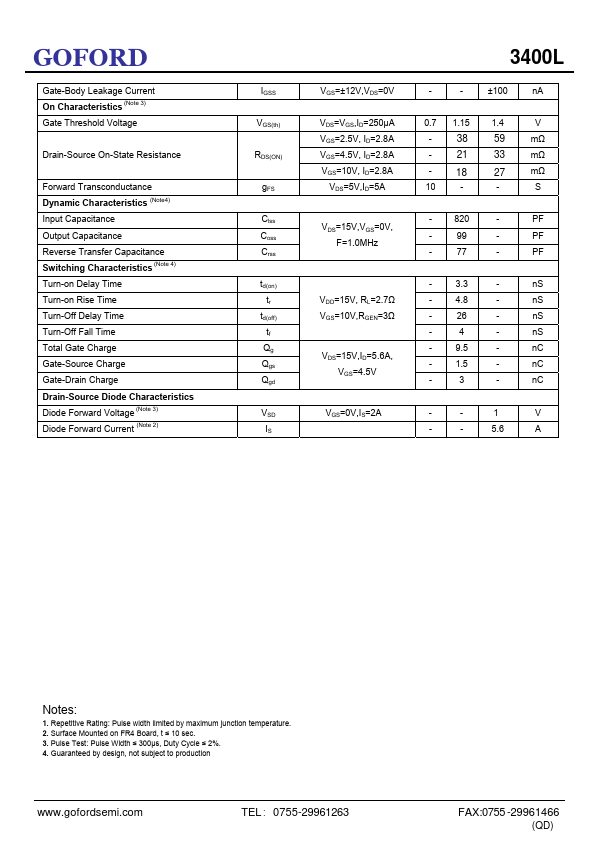

datasheet Preview Page 2

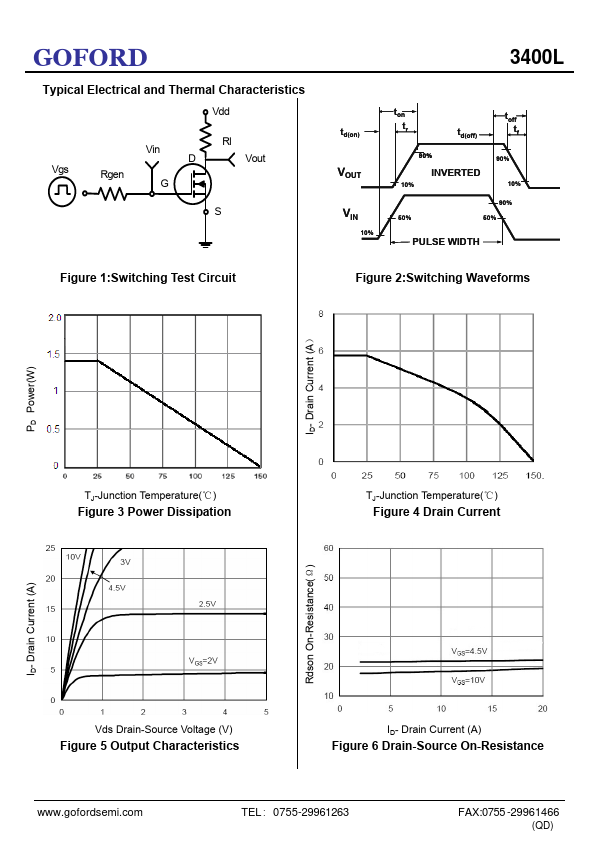

datasheet Preview Page 3

Datasheet Details

Part number	3400L
Manufacturer	GOFORD
File Size	1.39 MB
Description	MOSFET
Datasheet	3400L-GOFORD.pdf

3400L Product details

Description

The 3400L uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDSS RDS(ON) RDS(ON) RDS(ON) ID @ 10V (Typ. ) @ 4.5V(Typ. )@ 2.5V(Typ. ) 30V 18 mΩ 21 mΩ 38 mΩ 5.6A.
High power and current handing capability.
Surface mount package.
RoHS Compliant.
